Radxa Camera 8M 219
Overview
Radxa Camera 8M 219 is an high resolution camera module for Radxa products powered by a Sony IMX219 image sensor with 8M pixels. Radxa Camera 8M 219 Module is capable of the following applications:
- Face Recognition
- Road marking line recognition
- Licence plate recognition
Specification
-
IMX 219 Sensor：
- frame rate: Max. 30 frame/s in all-pixel scan mode
- Pixel rate: 280Mpixel/s (All-pixels mode)
- Data rate: Max. 912Mbps/Lane(@2lane)
- Number of active pixels: 3280 (H) × 2464 (V) approx. 8.08 M pixels
-
Lens Specification:
- Effective Focal Length: 2.95mm
- F/NO: 2.5 ± 5%
- View Angle: 54°
- TV-Distortion: ＜0.3%
- Composition: 1G4P
- Chief Ray Angle: 17°
- Filter: 650nm±10nm@50%
| Field of view (Diagonal/Horizontal/Vertical) |
|---|
| D=74° H=62° V=49° |
- Default FPC cable
- length: 150 mm
- Compatible with Radxa ZERO 3E / 3W
For compatibility with other Radxa SBCs, an additional FPC cable is required.
FPC Cable
-
Supports ZERO 3W / 3E

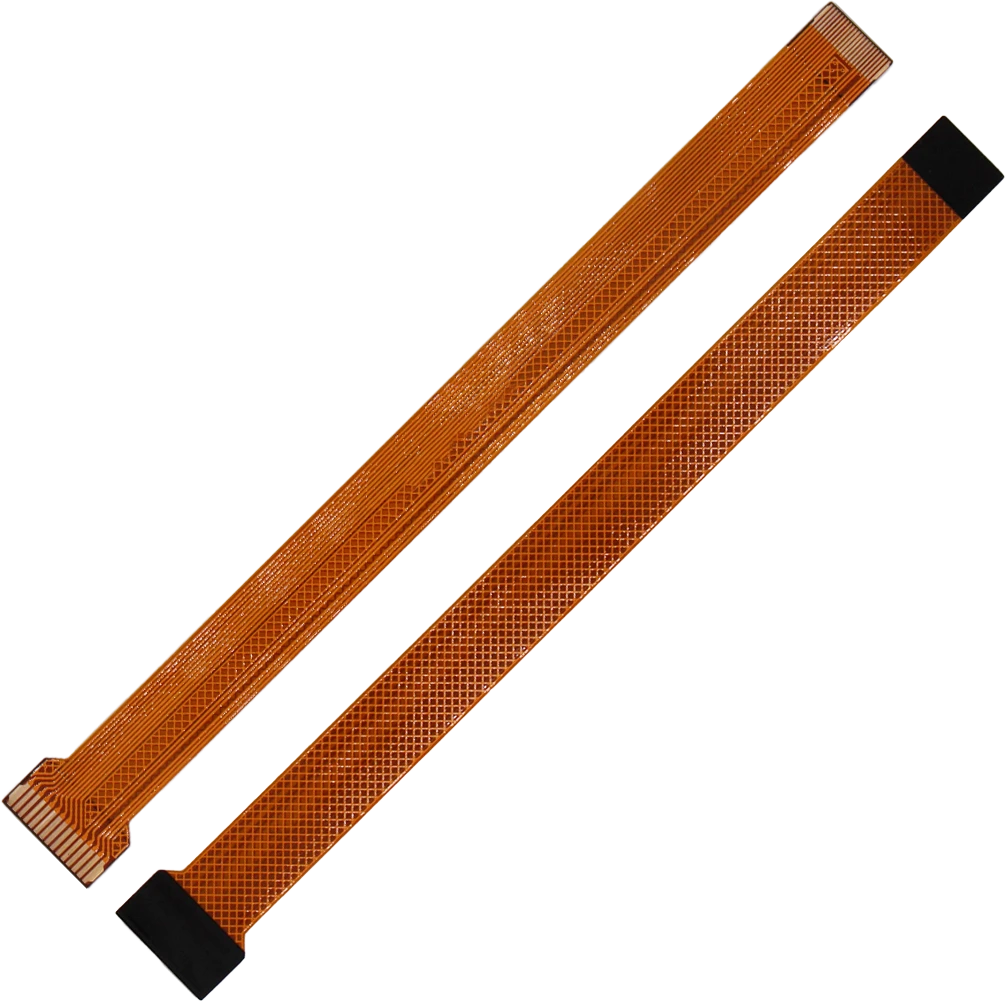

Cable spec: 22-Pin 0.5 mm pitch → 15-Pin 1.0 mm pitch (same side) FPC cable
-
Supports ROCK 5A / ROCK 5B / ROCK 5C / Cubie A5E / Cubie A7A / Cubie A7Z / Cubie A7S

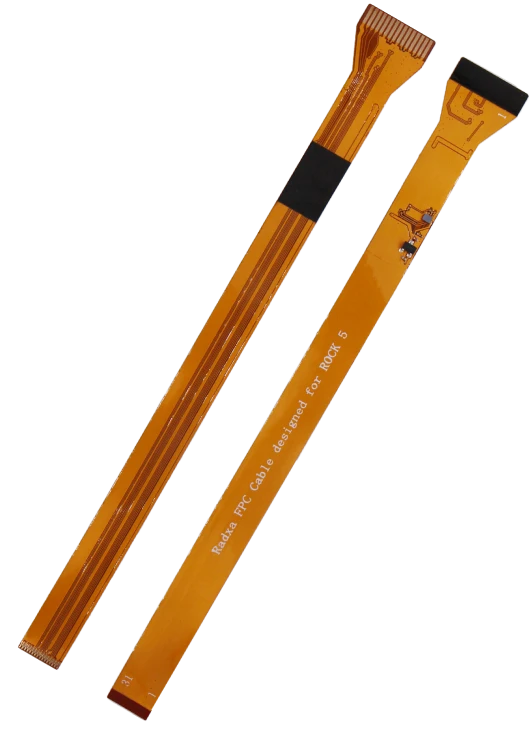

Cable spec: 31-Pin 0.3 mm pitch → 15-Pin 1.0 mm pitch (same side) FPC cable
-
Supports ROCK 3C / ROCK 4SE / Dragon Q6A

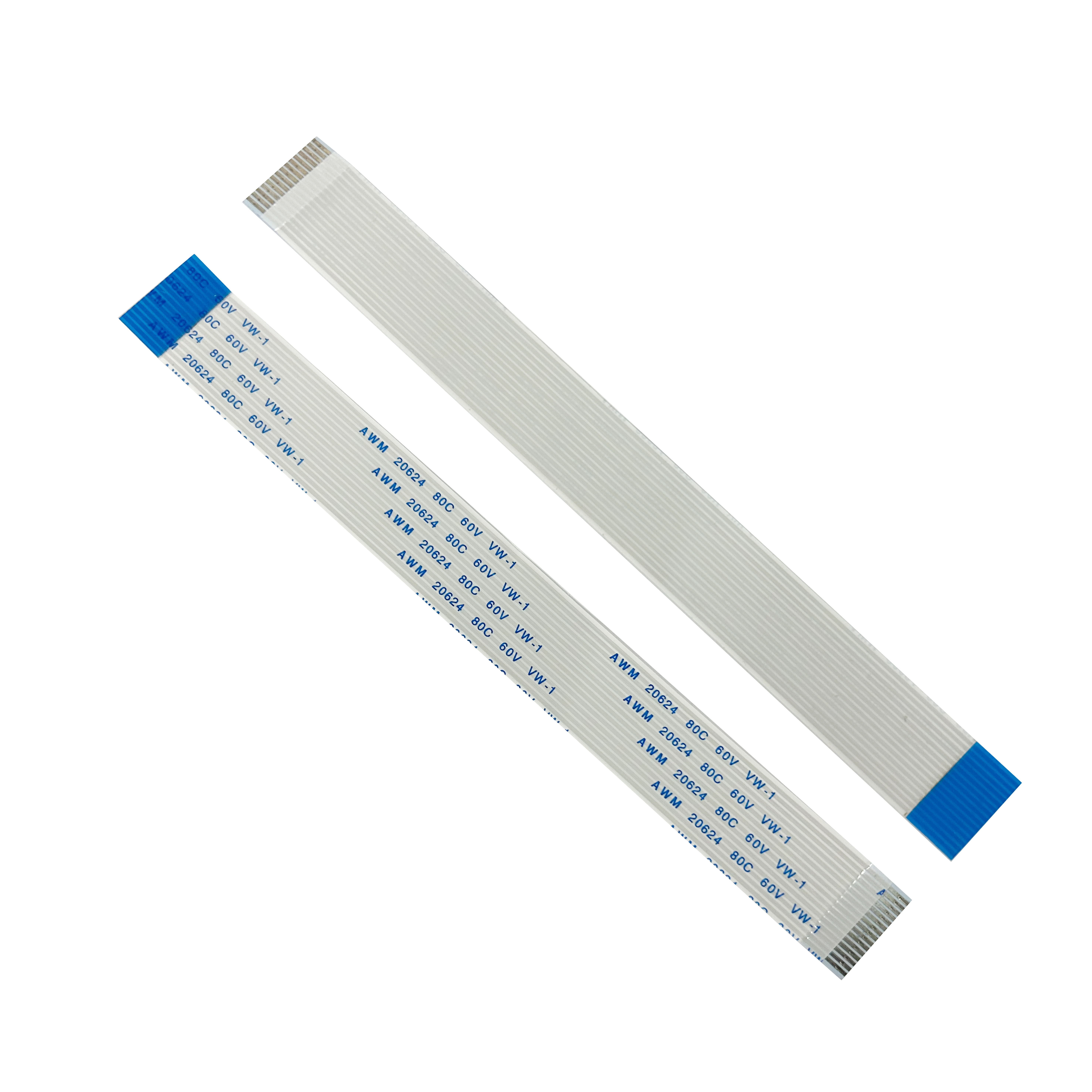

Cable spec: 15-Pin 1.0 mm pitch → 15-Pin 1.0 mm pitch (opposite side) FPC cable
Datasheet
Physical specifications
