Radxa 20W PoE+ HAT

Radxa 20W PoE+ HAT is a high-efficiency power solution designed for Single Board Computers (SBCs). It complies with IEEE 802.3af/at PoE standards, supporting power and network transmission through a single cable, significantly simplifying device wiring.

The Radxa 20W PoE+ HAT is designed to be compatible with multiple SBCs and is currently fully compatible with the Cubie A5E.

Key Features​

  • Energy Efficient - Maximum power of 20W, automatically adapts to different load requirements, reducing energy consumption.

  • Compact Design - Features a small form factor that, when paired with the Cubie A5E and Radxa Metal Case 7264, can be deployed in tight spaces.

  • Standard Power Supply - Supports IEEE 802.3af/at standards with a wide input voltage range of 37-57V and maximum output of 5V/4A.

  • Perfectly Compatible with Cubie A5E - Precision-cut openings and structural design ensure perfect interface compatibility.

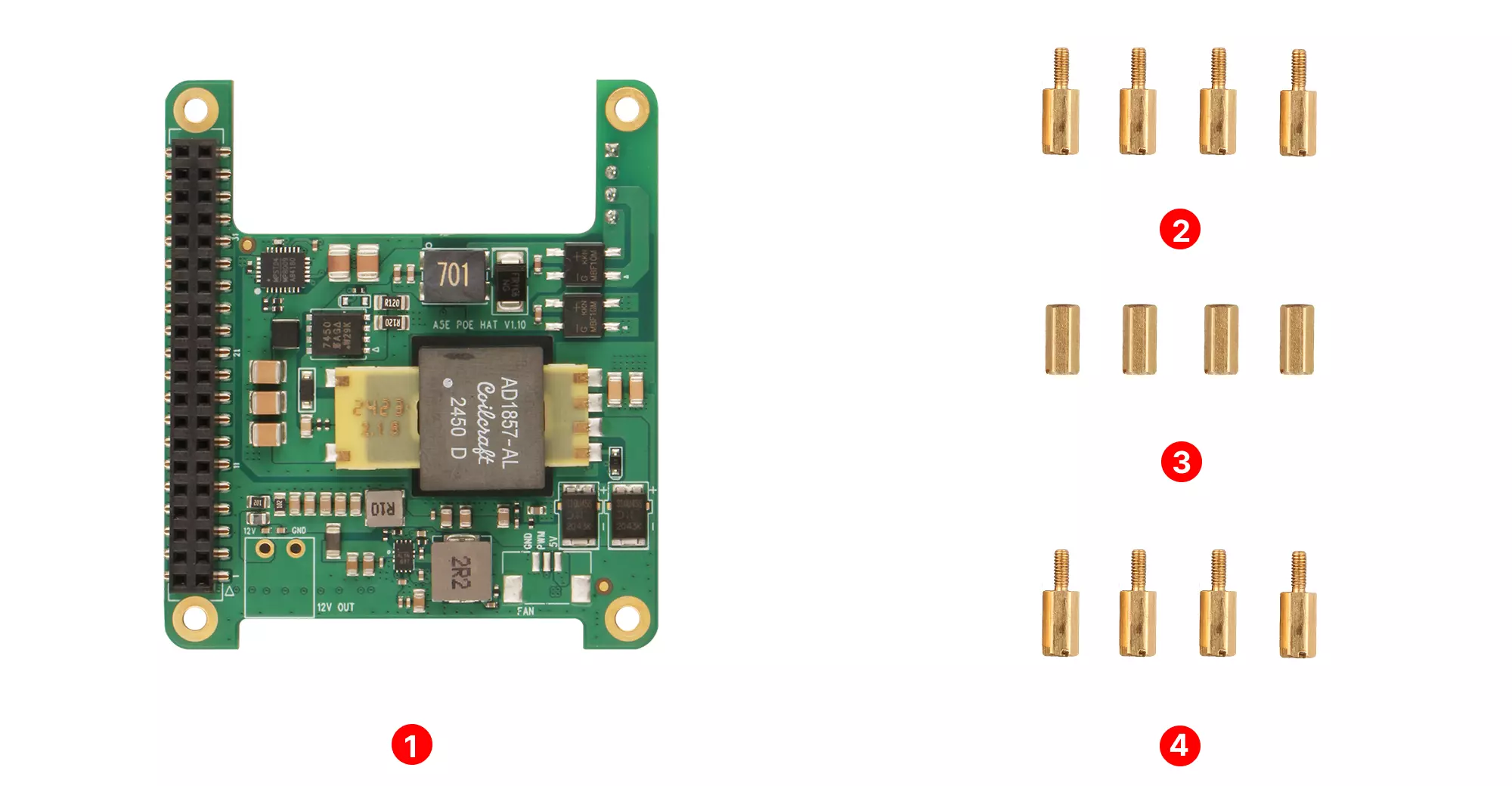

Package Contents​

  • ① : 1x Radxa 20W PoE+ HAT
  • ② : 4x M2*7 mm standoffs
  • ③ : 4x M2*9 mm standoffs
  • ④ : 4x M2*8 mm standoffs

Installation Guide​

Installation Tip

Use the Cubie A5E as a reference for installing the Radxa 20W PoE+ HAT.

The standoffs have a slot on one side, allowing them to be tightened or loosened using a flathead screwdriver.

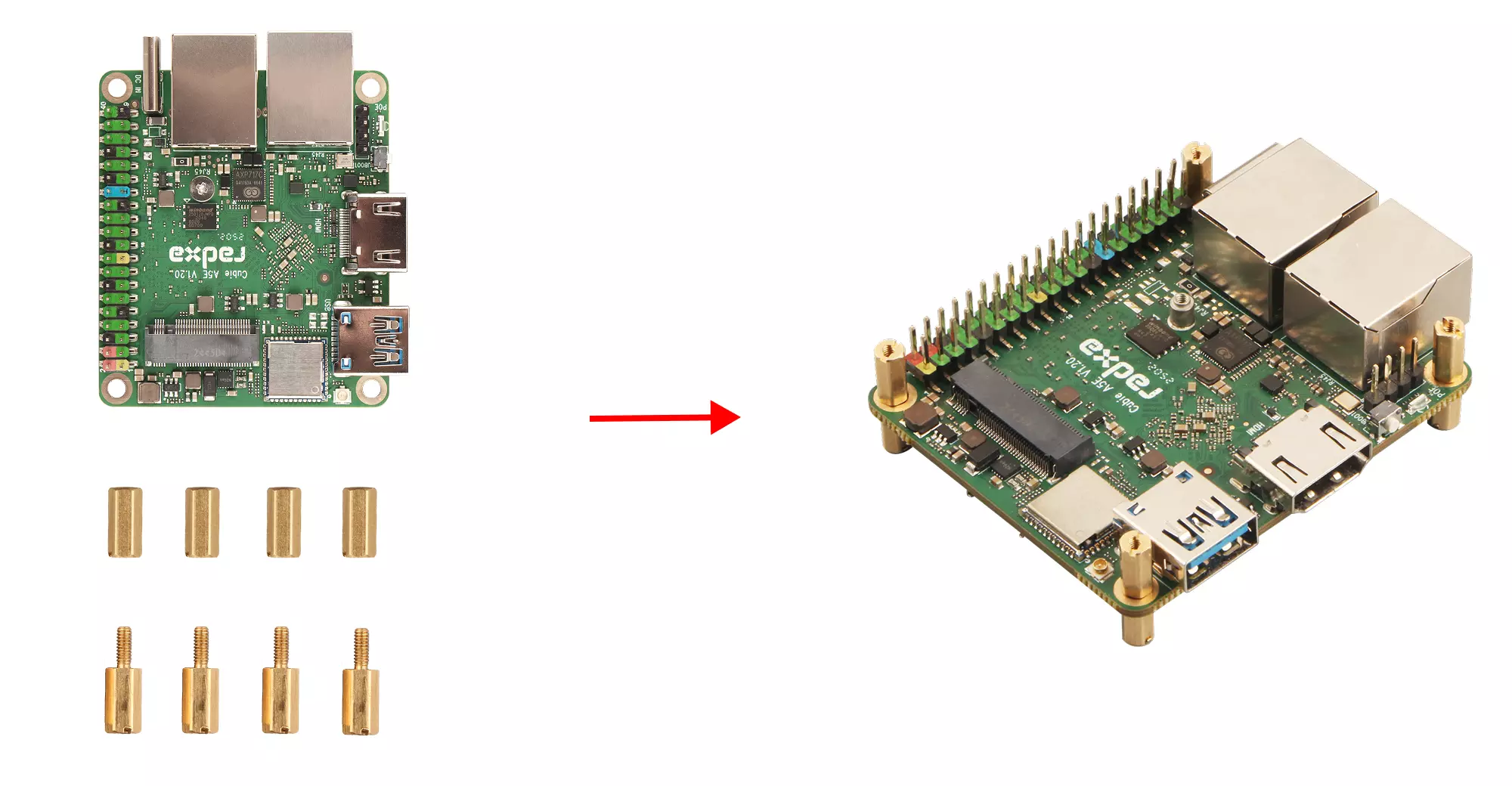

Step 1: Install Bottom Standoffs​

  • Use 4x M2*7 mm standoffs to elevate the bottom of the Cubie A5E
  • Use 4x M2*9 mm standoffs to secure the 4x M2*7 mm standoffs at the bottom of the Cubie A5E

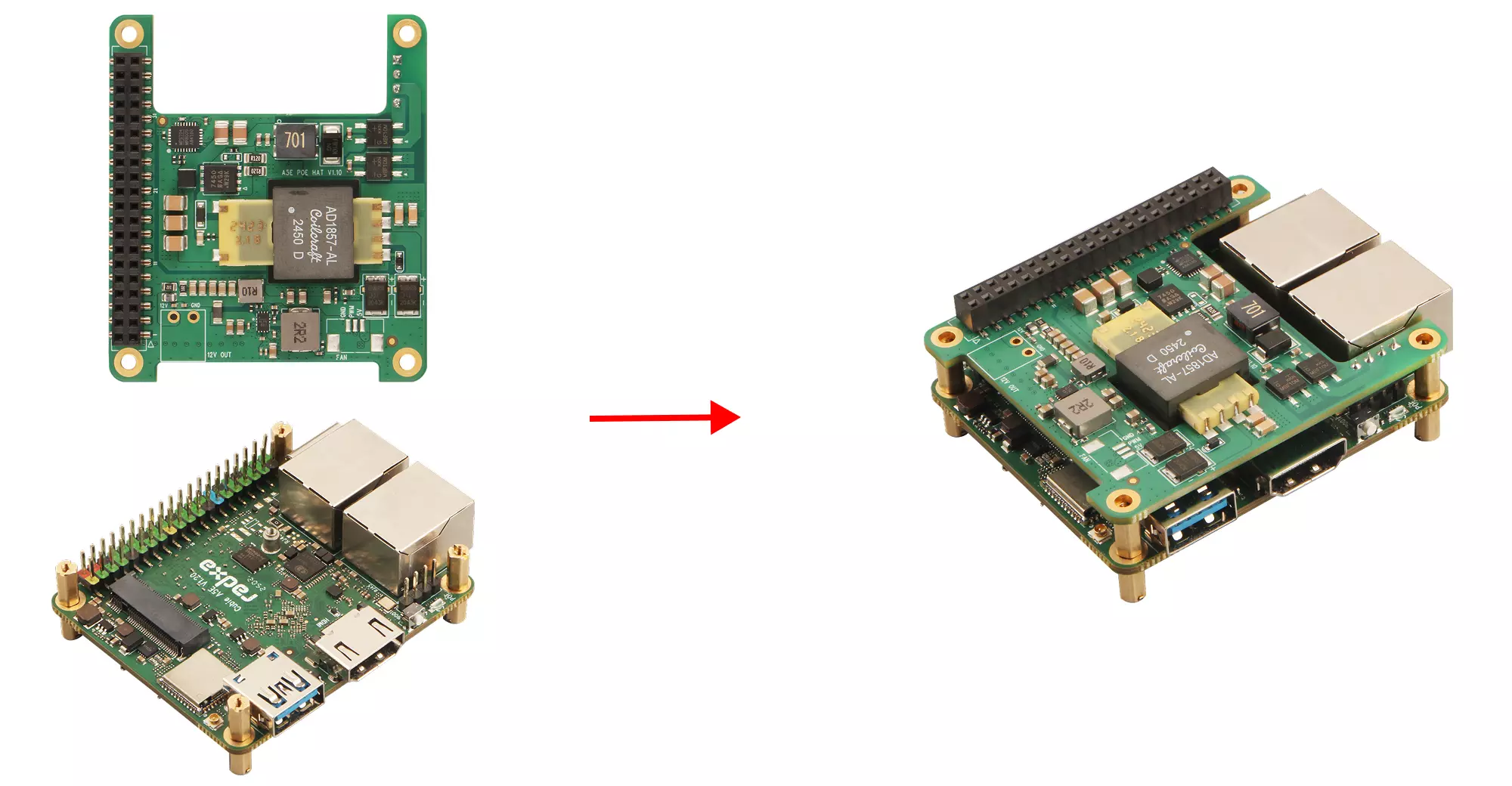

Step 2: Install PoE+ HAT​

  • Align the interfaces of the Radxa 20W PoE+ HAT with those of the Cubie A5E
  • Apply gentle pressure to ensure proper installation

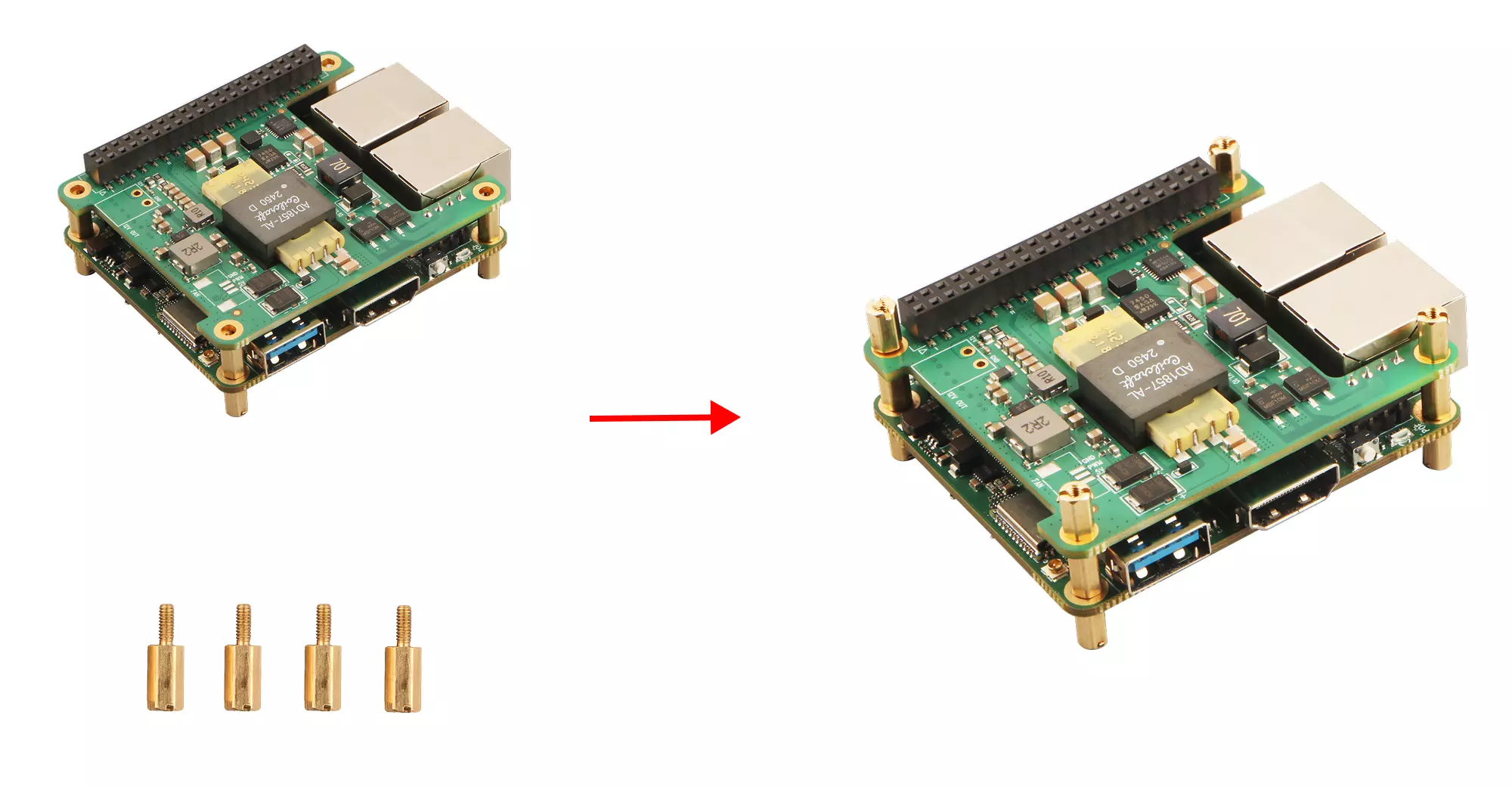

Step 3: Install Top Standoffs​

  • Use 4x M2*8 mm standoffs to secure the Radxa 20W PoE+ HAT
