Radxa Taco
Product Overview
The Radxa Taco is a highly expandable carrier board designed for the Raspberry Pi Compute Module 5 (CM5), suitable for edge computing and lightweight server scenarios requiring multi-storage, multi-network, and stable power supply capabilities.
Building on the CPU / memory / graphics and multimedia performance of the CM5, the Taco provides comprehensive engineering expansion capabilities:
- Storage Expansion: microSD card slot, M.2 M Key 2280 slot, 5x SATA interfaces
- Network Expansion: Gigabit Ethernet, 2.5G Ethernet, M.2 E Key 2230 slot
- Peripheral Expansion: 2x USB 3.2 Gen1 Type-A interfaces, fan, RTC and other interfaces
- Power & Maintenance: 12V DC power jack / header, RPI BOOT button, Type-C flash interface
This enables the Taco to rapidly build deployable NAS, gateway, industrial control, and local AI inference platforms while maintaining CM5 ecosystem compatibility.

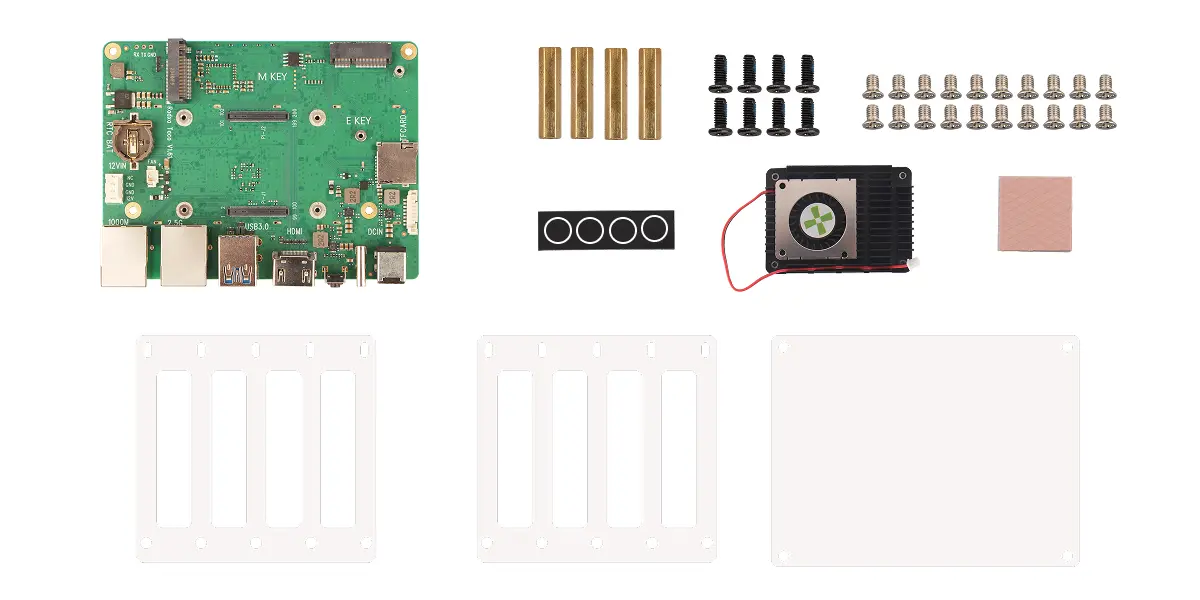

Package List
- 1x Radxa Taco
- 1x Active heatsink
- 3x Acrylic panels
- 1x Thermal silicone pad
- 1x Silicone feet pads (4 pcs)
- 4x M2.5 * 18mm copper standoffs
- 8x M2.5 * 6mm screws
- 20x KM3 _ 5 _ 5mm screws
- 1x 12V DC power adapter (packaged separately)
Note: Image shows only the Taco package contents. 12V DC power adapter is packaged separately.

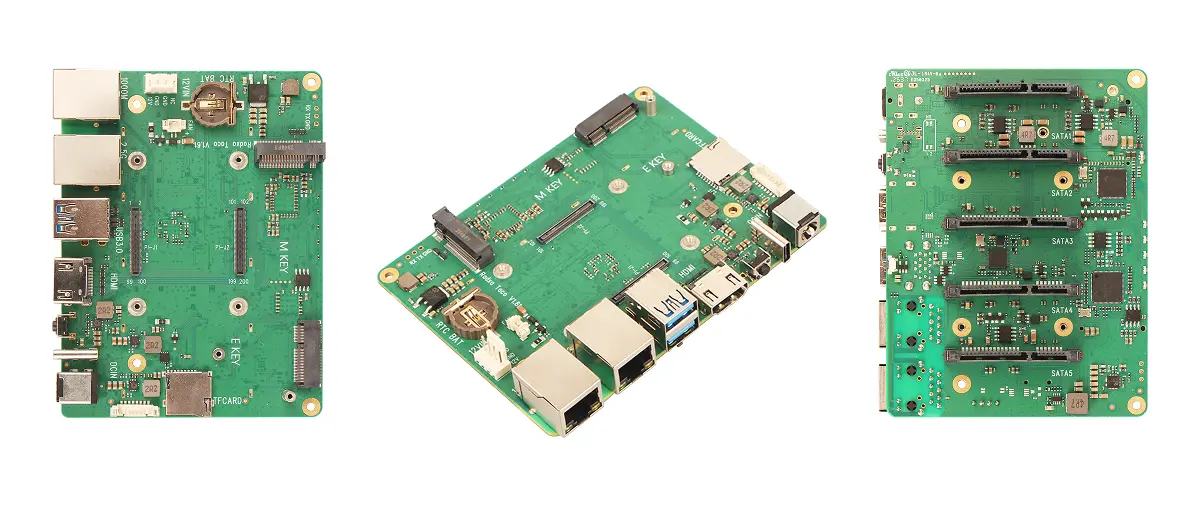

Product Views
| No. | View | No. | View | No. | View |
|---|---|---|---|---|---|
| Left | Taco Front View | Center | Taco Side View | Right | Taco Back View |
Specifications
| Category | Specifications |
|---|---|
| Storage | 1x microSD card slot 1x M.2 M Key 2280 slot 5x SATA interfaces |
| Network | 1x Gigabit Ethernet port 1x 2.5G Ethernet port 1x M.2 E Key 2230 slot |
| Display | 1x HDMI 2.0 (standard Type A) |
| USB | 2x USB 3.2 Gen1 Type-A ports 1x USB Type-C port for system flashing |
| Power | 12V DC power jack or 12V DC power header |
| Fan | 1x fan header with PWM speed control |
| RTC | 1x RTC coin cell holder (CR1220) for time retention |
| Other | 1x 8-Pin 1.25mm GPIO header (GPIO, I2C and PWM) 1x power button 1x power LED 5x SATA status LEDs 1x RPI BOOT button |
| Compatible Module | Raspberry Pi CM5 |
| Connectors | 2x 100-Pin B2B interfaces |
| Dimensions | 114 x 85 mm |

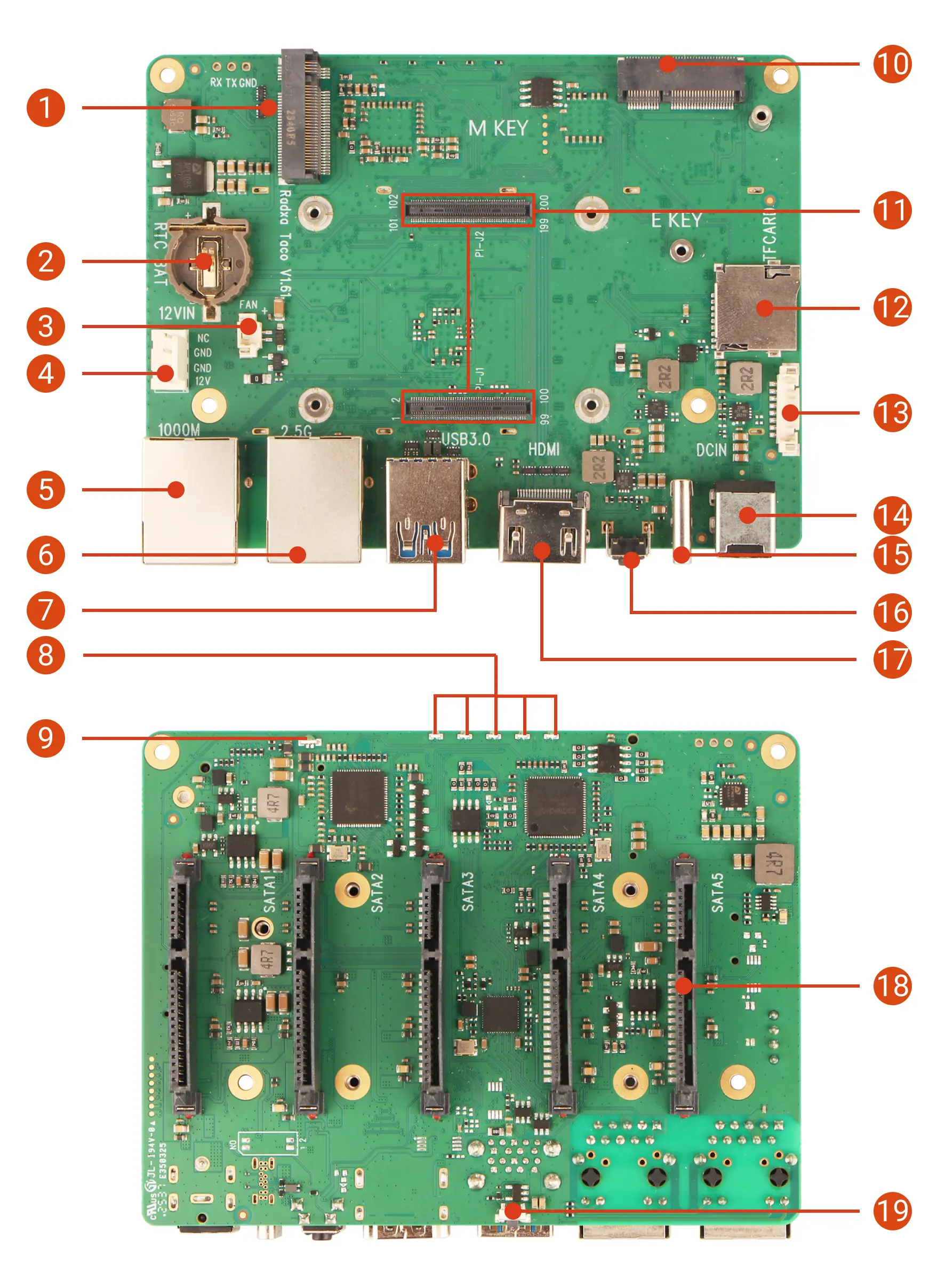

Product Interface
| No. | Description | No. | Description | No. | Description |
|---|---|---|---|---|---|
| 1 | M.2 M Key 2280 slot | 2 | RTC battery holder | 3 | Fan header |
| 4 | 12V DC power header | 5 | Gigabit Ethernet port | 6 | 2.5G Ethernet port |
| 7 | 2x USB 3.2 Gen1 Type-A interfaces | 8 | SATA status LEDs | 9 | Power LED |
| 10 | M.2 E Key 2230 slot | 11 | 2x 100-Pin B2B interfaces | 12 | microSD card slot |
| 13 | 8-Pin 1.25mm GPIO header | 14 | 12V DC power jack | 15 | USB Type-C (flash only) |
| 16 | Power button | 17 | Standard HDMI | 18 | 5x SATA interfaces |
| 19 | RPI BOOT button |
Interface Description

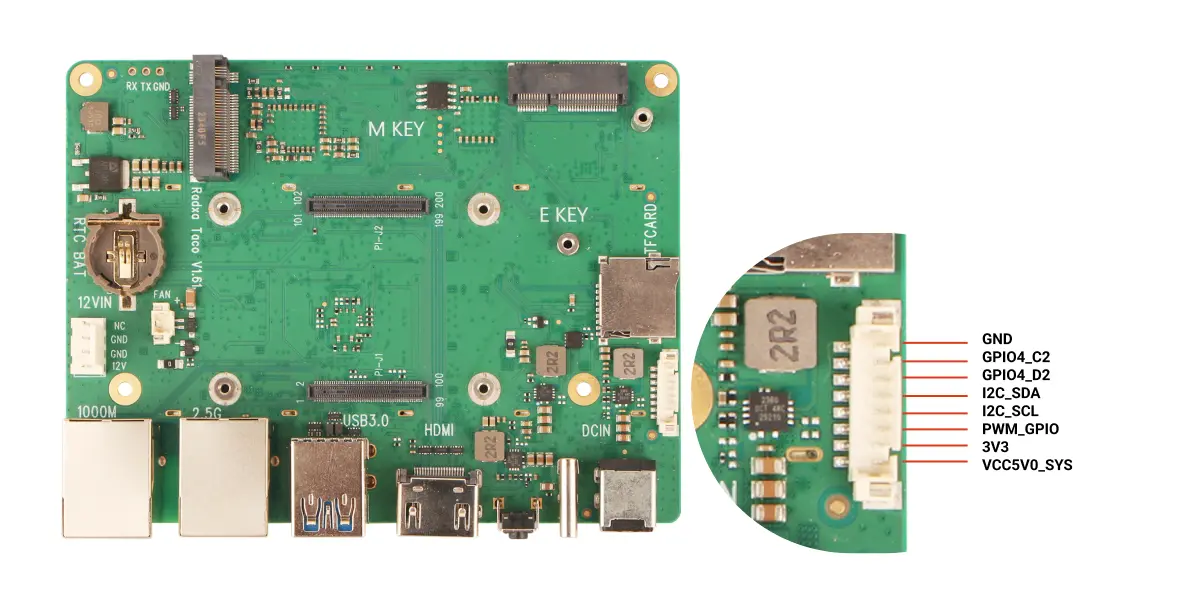

8-Pin 1.25mm GPIO Header
Used for connecting external devices, supporting GPIO, I2C and PWM functions.
Application Scenarios
- Lightweight NAS / Home Media Center: Build large-capacity local storage using 5x SATA and M.2 storage interfaces.
- Dual-Port Edge Gateway: Gigabit + 2.5G Ethernet ports suitable for software routers, bypass gateways, and network service integration.
- Industrial & Device Control: Meet long-term operation requirements through GPIO, RTC, fan, and stable 12V power supply.
- Local AI & Vision Inference Node: Combine CM5 computing power to deploy edge recognition, detection, and data collection tasks.
- Development & Teaching Platform: Rich interface types, suitable for Linux system, driver, and hardware debugging experiments.
