ACUITY Toolkit Environment Configuration

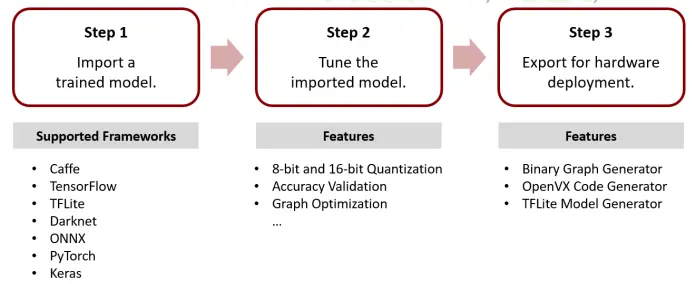

The ACUITY Toolkit is an end-to-end integrated offline development tool for model conversion, model quantization, and model compilation. ACUITY supports model conversion for various AI frameworks and can directly generate code for model execution.

SDK

The ACUITY Toolkit is installed as a Docker image. Before installing ACUITY, users need to install Docker on an x86 PC.

Install Docker​

Install Docker on your x86 PC according to your platform. For more details, refer to the Docker documentation.

Here, we use Ubuntu as an example to install Docker.

Uninstall Old Versions of Docker​

X86 Linux PC
for pkg in docker.io docker-doc docker-compose docker-compose-v2 podman-docker containerd runc; do sudo apt-get remove $pkg; done

Configure Docker APT Repository​

X86 Linux PC
# Add Docker's official GPG key:
sudo apt-get update
sudo apt-get install ca-certificates curl
sudo install -m 0755 -d /etc/apt/keyrings
sudo curl -fsSL https://download.docker.com/linux/ubuntu/gpg -o /etc/apt/keyrings/docker.asc
sudo chmod a+r /etc/apt/keyrings/docker.asc

# Add the repository to Apt sources:
echo \
  "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.asc] https://download.docker.com/linux/ubuntu \
  $(. /etc/os-release && echo "${UBUNTU_CODENAME:-$VERSION_CODENAME}") stable" | \
  sudo tee /etc/apt/sources.list.d/docker.list > /dev/null
sudo apt-get update

Install Docker​

X86 Linux PC
sudo apt-get install docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin

Install ACUITY​

Download ACUITY Package​

Download the ACUITY Docker package from the Allwinner Netdisk and extract it.

X86 Linux PC
unzip docker_images_v2.0.x.zip

Load Docker Image​

X86 Linux PC
cd docker_images_v2.0.x
unzip ubuntu-npu_v2.0.10.tar.zip
sudo docker load -i ubuntu-npu_v2.0.10.tar

Once the Docker image is loaded, you can see it in docker images with the name ubuntu‑npu:v2.0.10.

Create Docker Container​

X86 Linux PC
mkdir docker_data && cd docker_data
sudo docker run ‑‑ipc=host ‑itd ‑v ${PWD}:/workspace ‑‑name allwinner_v2.0.10 ubuntu‑npu:v2.0.10 /bin/bash

Once the Docker container is created, you can see it in docker ps -a with the name allwinner_v2.0.10.

Access Docker Container​

Use docker ps -a to find the container ID of allwinner_v2.0.10.

X86 Linux PC
sudo docker exec ‑it <container_id> /bin/bash
