40 Pin GPIO Interface

Radxa Cubie A7A features an onboard 40-Pin GPIO (General Purpose Input/Output) interface, providing highly flexible support for hardware expansion.

Users can connect various sensors, actuators, communication modules, displays, and other embedded peripherals to the 40-Pin GPIO interface, enabling rapid prototyping and functional verification for IoT, robotics control, industrial automation, and other fields.

danger

When using the 40-Pin GPIO interface, please pay attention to the wiring of the pins and peripherals. Make sure the pin connections are correct, as improper operation may cause hardware damage to the device.

GPIO Functions

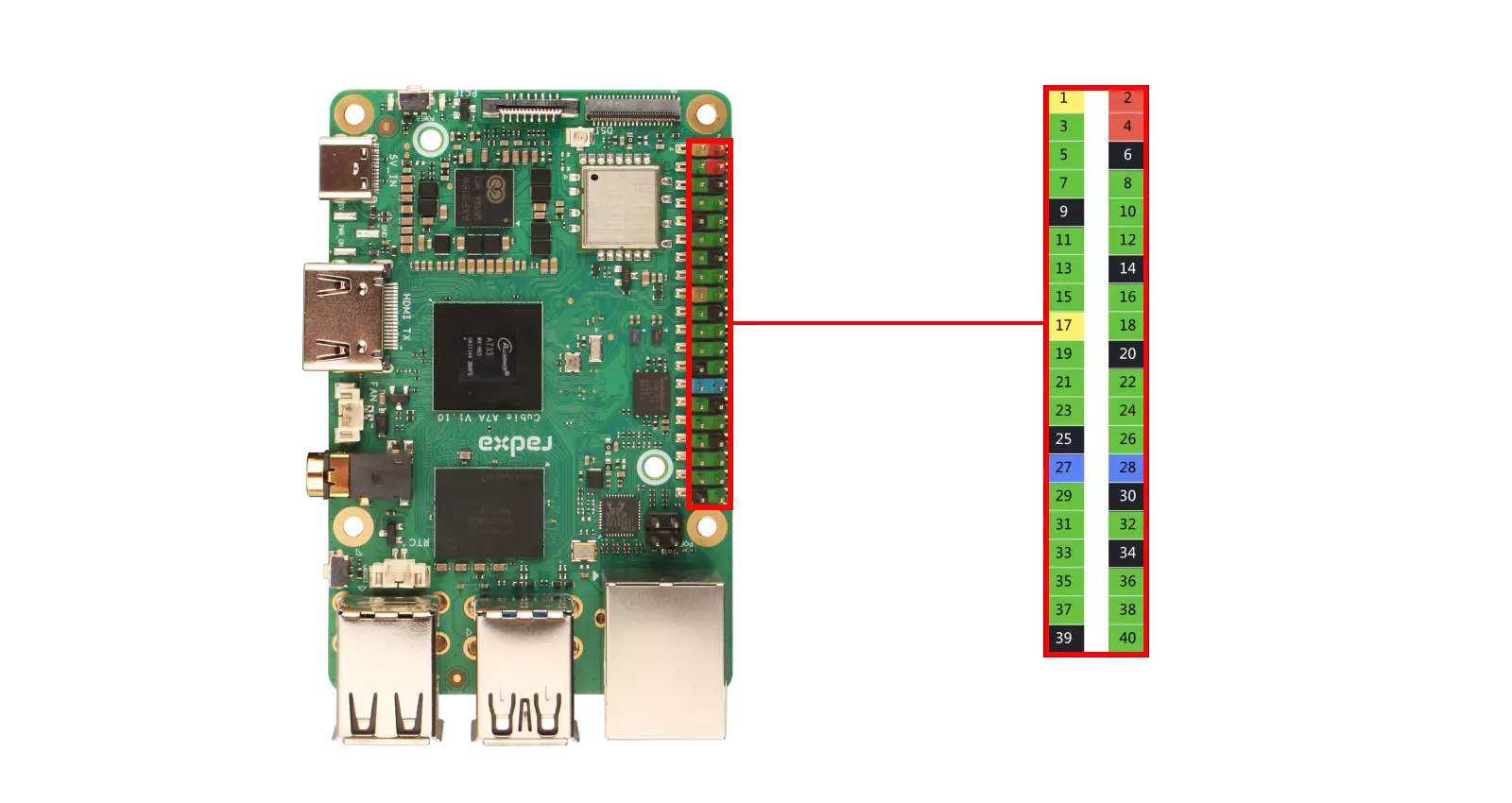

Cubie A7A supports connecting external devices to the onboard GPIO pins, supporting UART, SPI, I2C, ADC, and more.

FUNC9	FUNC8	FUNC7	FUNC6	FUNC5	FUNC4	FUNC3	FUNC2	FUNC1	Pin#	Pin#	FUNC1	FUNC2	FUNC3	FUNC4	FUNC5	FUNC6	FUNC7	FUNC8	FUNC9
								+3.3V	1	2	+5.0V
	PJ-EINT23	TWI11-SDA	TWI3-SDA	TWI7-SDA	UART2-CTS	UART3-RX	PWM1-5	PJ23	3	4	+5.0V
	PJ-EINT22	TWI11-SCK	TWI3-SCK	TWI7-SCK	UART2-RTS	UART3-TX	PWM1-4	PJ22	5	6	GND
	PB-EINT0	JTAG-MS			SPI2-CS0	UART0-TX	UART2-TX	PB0	7	8	PB9	UART0-TX	I2S0-DIN2	I2S0-DOUBT2	PWM1-1	WATCHDOG-SIG	TWI8-SCK	TWI0-SCK	PB-EINT9
								GND	9	10	PB10	UART0-RX	I2S0-DIN3	I2S0-DOUBT3	PWM1-2	PLL-LOCK-DBG	TWI8-SDA	TWI0-SDA	PB-EINT10
			PB-EINT1	JTAG-CK	SPI2-CLK	UART0-RX	UART2-RX	PB1	11	12	PK0	MCSIA-D0N	UART6-DCD	I2S4-BCLK	HDMI-CEC	TWI1-SDA	NCSI1-HSYNC	SGPIO-SLOAD	PK-EINT0
		PL-EINT6	S-PWM0-4	S-IR-RX	S-SPI0-MOSI	S-UART0-TX	S-JTAG-DO	PL6	13	14	GND
			PL-EINT7	S-PWM0-5	S-SPI0-MISO	S-UART0-RX	S-JTAG-DI	PL7	15	16	PJ24	PWM1-6	UART4-TX	TWI4-SCK	SPI3-CLK	PJ-EINT24
								+3.3V	17	18	PJ25	PWM1-7	UART4-RX	TWI4-SDA	SPI3-MOSI	PJ-EINT25
		PD-EINT12	PWM1-2	SPI1-MOSI	EINK-D12	DSI1-D1P	LVDS1-D1P	PD12	19	20	GND
		PD-EINT13	PWM1-3	SPI1-MISO	EINK-D13	DSI1-D1N	LVDS1-D1N	PD13	21	22	PL10	S-UART0-TX	S-TWI2-SCK	S-UART1-TX	S-PWM0-8	PL-EINT10
		PD-EINT11	PWM1-1	SPI1-CLK	EINK-D11	DSI1-D0N	LVDS1-D0N	PD11	23	24	PD10	LVDS1-D0P	DSI1-D0P	EINK-D10	SPI1-CS0	PWM1-0	PD-EINT10
								GND	25	26	PD14	LVDS1-D2P	DSI1-CKP	EINK-D14	SPI1-HOLD	UART3-RTS	PD-EINT14
		PD-EINT1	UART3-RX	TWI2-SDA	EINK-LEH	DSI1-D2N	LVDS1-CKN	PD17	27	28	PD16	LVDS1-CKP	DSI1-D2P	EINK-OEH	TWI2-SCK	UART3-TX	PD-EINT16
PK-EINT5	JTAG-MAS-CK	NCSI1-D14	SPI3-CLK	PWM1-9	PWM1-8	PCIE-CLKREQN	MCSIA-CKP	PK5	29	30	GND
PK-EINT6	JTAG-MAS-DO	NCSI1-D13	SPI3-MOSI	UART2-RTS	UART4-TX	TWI2-SCK	MCSIA-D2N	PK6	31	32	PD20	TWI0-SCK	EINK-CKV	PCIE-CLKREQN	UART4-TX	TWI3-SCK	PWM0-2
PK-EINT7	JTAG-MAS-DI	NCSI1-D12	SPI3-MISO	UART2-CTS	UART4-RX	TWI2-SDA	MCSIA-D2P	PK7	33	34	GND
PK-EINT2	SGPIO-SDATAIN	NCSI1-PCLK	TWI5-SDA	HDMI-SDA	I2S4-LRCK	UART6-DTR	MCSIA-D1N	PK2	35	36	PK1	MCSIA-D0P	UART6-DSR	I2S4-MCLK	HDMI-SCL	TWI1-SCK	NCSI1-VSYNC	SGPIO-SCLK	PK-EINT1
PK-EINT8	JTAG-MAS-NTRST	NCSI1-D11	SPI3-CS1	UART2-TX	UART4-RTS	MCSI0-MCLK	MCSIA-D3N	PK8	37	38	PK3	MCSIA-D1P	UART6-RI	I2S4-DIN0	I2S4-DOUBT1	TWI5-SCK	NCSI1-MCLK	SGPIO-SDATAOUT	PK-EINT3
								GND	39	40	PK4	MCSIA-CKN	PCIE-WAKEN	I2S4-DOUBT0	I2S4-DIN1	SPI3-CS0	NCSI1-D15	JTAG-MAS-MS	PK-EINT4

GPIO Pin Numbering

To control a specific pin, you need to calculate the pin number using the following formula:

GPIO Chip	Pin Range	Calculation Formula
GPIOCHIP0	A ~ K	NUM + 32 * (A ~ K)
GPIOCHIP1	L ~	NUM + 32 * (L ~ )

Calculation Example:

PB10

GPIOCHIP0 -> 10 + 32 * (A ~ K) -> 10 + 32 * 1 -> 42

GPIOCHIP1 -> 4 + 32 * (A ~ K) -> 4 + 32 * 10 -> 324

GPIO Usage

Through the 40-Pin GPIO interface, demonstrate common GPIO usage.

Install python-periphery

Use the python-periphery library to control GPIO pins.

radxa@cubie-a7a$

sudo pip3 install python-periphery

GPIO Input

Hardware Preparation

Board
Dupont wire

Software Preparation

The following code is used to read the high and low level of the PK4 pin using the python-periphery library.

gpio_input.py

from periphery import GPIO
import time

def read_gpio_input():
    # Configure GPIO input (modify pin number according to actual hardware)
    # Using pin 324 of /dev/gpiochip0 here (corresponds to PK4)
    try:
        # Initialize GPIO in input mode
        gpio_in = GPIO("/dev/gpiochip0", 324, "in")

        print("Starting GPIO input reading (press Ctrl+C to exit)")
        while True:
            # Read pin value
            value = gpio_in.read()
            print(f"GPIO input value: {value} (True=High, False=Low)")
            time.sleep(1)  # Read once per second

    except KeyboardInterrupt:
        print("\nProgram exited")
    except Exception as e:
        print(f"Error occurred: {e}")
    finally:
        # Ensure resources are released
        try:
            gpio_in.close()
        except:
            pass

if __name__ == "__main__":
    read_gpio_input()

Test Steps

Connect the PK4 pin to the GND or 3.3V pin
Save the code as gpio_input.py
Run the test code using python3 gpio_input.py

Experimental Phenomenon

The terminal will output False or True information.

False represents a low level, True represents a high level.

GPIO Output

Hardware Preparation

Board
Dupont wire

Software Preparation

Test Code

The following code is used to control the PK3 pin to output high and low levels, and then read the high and low levels of the PK3 pin through the PK4 pin.

gpio_output.py

from periphery import GPIO
import time

def gpio_output_with_feedback():
    # GPIO Configuration (modify pin numbers based on your hardware)
    # PK3 (output) → maps to pin 323 of /dev/gpiochip0
    # PK4 (input)  → maps to pin 324 of /dev/gpiochip0
    OUTPUT_PIN_CHIP = "/dev/gpiochip0"
    OUTPUT_PIN_NUMBER = 323  # PK3 (output pin, controlled by the script)
    INPUT_PIN_NUMBER = 324   # PK4 (input pin, reads PK3's output state)

    # Initialize GPIO objects as None first (for safe release later)
    gpio_out = None
    gpio_in = None

    try:
        # Initialize PK3 as OUTPUT mode
        gpio_out = GPIO(OUTPUT_PIN_CHIP, OUTPUT_PIN_NUMBER, "out")
        # Initialize PK4 as INPUT mode
        gpio_in = GPIO(OUTPUT_PIN_CHIP, INPUT_PIN_NUMBER, "in")

        # Print test initialization info
        print("=== GPIO Output-Input Feedback Test Started ===")
        print(f"Controlled Pin (PK3): {OUTPUT_PIN_CHIP} - Pin {OUTPUT_PIN_NUMBER} (OUTPUT)")
        print(f"Monitoring Pin (PK4): {OUTPUT_PIN_CHIP} - Pin {INPUT_PIN_NUMBER} (INPUT)")
        print("Test Behavior: PK3 toggles HIGH/LOW every 1s; PK4 verifies PK3's state")
        print("Press Ctrl+C to stop the test\n")

        # Main loop: Toggle PK3 and read PK4 feedback
        while True:
            # 1. Set PK3 to HIGH level
            gpio_out.write(True)
            time.sleep(0.1)  # Short delay for signal stabilization (avoid read lag)
            pk4_reading = gpio_in.read()
            print(f"PK3 Output: HIGH (True) | PK4 Reading: {pk4_reading}")

            # Keep PK3 HIGH for 1 second
            time.sleep(1)

            # 2. Set PK3 to LOW level
            gpio_out.write(False)
            time.sleep(0.1)  # Short delay for signal stabilization
            pk4_reading = gpio_in.read()
            print(f"PK3 Output: LOW (False) | PK4 Reading: {pk4_reading}")

            # Keep PK3 LOW for 1 second
            time.sleep(1)

    # Handle user-initiated exit (Ctrl+C)
    except KeyboardInterrupt:
        print("\n\nTest stopped by user (Ctrl+C)")
    # Handle other unexpected errors (e.g., GPIO access failure)
    except Exception as e:
        print(f"\nError during test: {str(e)}")
    # Ensure GPIO resources are released even if an error occurs
    finally:
        print("\nReleasing GPIO resources...")
        # Safely close PK3 (set to LOW first to avoid residual high level)
        if gpio_out:
            try:
                gpio_out.write(False)
                gpio_out.close()
                print(f"Successfully closed PK3 (Pin {OUTPUT_PIN_NUMBER})")
            except Exception as close_err:
                print(f"Failed to close PK3 (Pin {OUTPUT_PIN_NUMBER}): {str(close_err)}")
        # Safely close PK4
        if gpio_in:
            try:
                gpio_in.close()
                print(f"Successfully closed PK4 (Pin {INPUT_PIN_NUMBER})")
            except Exception as close_err:
                print(f"Failed to close PK4 (Pin {INPUT_PIN_NUMBER}): {str(close_err)}")
        print("Resource release complete.")

# Run the test when the script is executed directly
if __name__ == "__main__":
    gpio_output_with_feedback()

Test Steps

Short the PK3 pin and PK4 pin
Save the code as gpio_output.py
Run the test code using sudo python3 gpio_output.py

Experimental Phenomenon

The terminal will output False or True information.

False represents a low level, True represents a high level.

PWM Output

Hardware Preparation

Board
LED
Dupont wire

Software Preparation

Test Code

The following code is used to test PWM output using the python-periphery library.

pwm_output.py

from periphery import PWM
import time

def pwm_test():
    try:
        # Configure PWM parameters - modify according to your hardware
        # Common PWM paths: /sys/class/pwm/pwmchip0/pwm0, etc.
        PWM_CHIP = 10       # PWM chip number
        PWM_CHANNEL = 2     # PWM channel number

        # Initialize PWM
        pwm = PWM(PWM_CHIP, PWM_CHANNEL)

        print(f"PWM Test: Using PWM{PWM_CHIP}.{PWM_CHANNEL} (Pin: PD12)")

        # Set PWM frequency to 1kHz
        frequency = 1000  # 1000 Hz
        pwm.frequency = frequency
        print(f"  Set frequency: {frequency} Hz")

        # Enable PWM output
        pwm.enable()
        print("  PWM enabled")

        # Test different duty cycles (0% to 100%)
        duty_cycles = [0.0, 0.25, 0.5, 0.75, 1.0]

        for duty in duty_cycles:
            pwm.duty_cycle = duty
            print(f"  Set duty cycle: {duty*100:.1f}%")
            time.sleep(1)  # Maintain current duty cycle for 1 second

        # Cleanup
        pwm.disable()
        pwm.close()
        print("  PWM disabled and closed")
        print("PWM Test completed successfully")

    except Exception as e:
        print(f"PWM Test failed: {e}")

if __name__ == "__main__":
    print("Starting PWM Signal Test...\n")
    pwm_test()

Test Steps

Enter rsetup -> Overlay -> Manage overlays and check the Enable PWM1-2 option, then restart the system
Connect the positive terminal of the LED to the PD12 pin
Connect the negative terminal of the LED to the GND pin
Save the code as pwm_output.py
Run the test code using sudo python3 pwm_output.py

Experimental Phenomenon

The connected LED will flash with different brightness, from bright to dark.

UART Usage

UART（Universal Asynchronous Receiver/Transmitter） is a widely used serial communication protocol, used for asynchronous serial data transmission between embedded systems, computers, and peripherals.

Hardware Preparation

Board
Dupont wire

Software Preparation

Test Code

The following code is used to test UART4 loopback communication using the python-periphery library.

uart_example.py

from periphery import Serial
import time

def uart_test():
    try:
        # Modify the serial device path according to your hardware, common paths include /dev/ttyS0, /dev/ttyS1, /dev/ttyUSB0, etc.
        # PJ24(TX)  PJ25(RX)
        UART_DEVICE = "/dev/ttyAS4"
        BAUDRATE = 115200

        # Initialize serial port
        serial = Serial(UART_DEVICE, BAUDRATE)

        print(f"UART Test: Opening serial port {UART_DEVICE}, baud rate {BAUDRATE}")

        # Send test data
        test_message = "Hello, UART Test!\n"
        serial.write(test_message.encode())
        print(f"  Sent data: {test_message.strip()}")

        # Wait for data transmission
        time.sleep(0.1)

        # Try to read data (if loopback or other device responds)
        if serial.input_waiting() > 0:
            received_data = serial.read(serial.input_waiting())
            print(f"  Received data: {received_data.decode().strip()}")
        else:
            print("  No data received (normal unless loopback is connected)")

        serial.close()
        print("UART test completed")

    except Exception as e:
        print(f"UART test failed: {e}")

if __name__ == "__main__":
    uart_test()

Test Steps

Enter rsetup -> Overlay -> Manage overlays and check the Enable UART4 option, then restart the system
Short the PJ24 pin and PJ25 pin
Save the code as uart_example.py
Run the test code using sudo python3 uart_example.py

Experimental Phenomenon

The terminal will output the sent and received information, and you can judge whether the UART loopback test is successful based on the terminal output information.

I2C Usage

I2C is a widely used synchronous serial communication protocol developed by Philips (now NXP), mainly used for short-distance chip-to-chip communication.

Hardware Preparation

Board
I2C device (e.g., OLED display, its corresponding I2C address is 0x3C)
Dupont wire

Software Preparation

Test Code

The following code is used to test I2C communication using the python-periphery library.

i2c_example.py

from periphery import I2C

def i2c_device_detection():
    """I2C Test - Check if device exists
    Pin reference: PJ23 (SDA), PJ22 (SCL)
    """
    # Modify according to your hardware connection
    # Common I2C bus devices: /dev/i2c-0, etc.
    I2C_BUS = "/dev/i2c-7"
    TARGET_ADDR = 0x3C  # Target address to check

    i2c = None  # Initialize I2C object reference
    try:
        # Initialize I2C object
        i2c = I2C(I2C_BUS)

        # Attempt a simple read/write operation to detect device
        # Sending a single 0x00 byte as test communication
        msgs = [I2C.Message([0x00])]
        i2c.transfer(TARGET_ADDR, msgs)

        print(f"I2C Test: Device found at address 0x{TARGET_ADDR:02X}")
        return True

    except Exception as e:
        # Exception (e.g., IOError) usually indicates no device or no response
        print(f"I2C Test: No device or no response at address 0x{TARGET_ADDR:02X}: {e}")
        return False
    finally:
        # Ensure I2C resources are released
        if i2c is not None:
            try:
                i2c.close()
            except:
                pass

if __name__ == "__main__":
    print("Starting I2C Device Detection...")
    i2c_device_detection()
    print("I2C Test completed")

Test Steps

Enter rsetup -> Overlay -> Manage overlays and check the Enable TWI7 option, then restart the system
Connect the SCL pin of the OLED display to the PJ22 pin, connect the SDA pin of the OLED display to the PJ23 pin, connect the VCC to 5V, and connect the GND to GND
Save the code as i2c_example.py
Run the test code using sudo python3 i2c_example.py

Experimental Phenomenon

The script function is to check if a specific I2C device exists on the specified I2C bus, and can determine if the I2C device is working normally.

SPI Usage

SPI (Serial Peripheral Interface) is a high-speed, full-duplex, synchronous serial communication protocol developed by Motorola (now NXP), mainly used for short-distance chip-to-chip communication, commonly used in data transmission between sensors, storage devices (such as Flash), and displays.

Hardware Preparation

Board
Dupont wire

Software Preparation

Test Code

The following code is used to test SPI loopback communication using the python-periphery library.

spi_example.py

from periphery import SPI

def spi_communication_test():
    # Data to be transmitted (4 bytes)
    transmit_data = [0xAA, 0xBB, 0xCC, 0xDD]

    try:
        # Initialize SPI resource
        # Parameters: SPI device path, mode 0, 1MHz clock frequency
        spi = SPI("/dev/spidev3.0", 0, 1000000)

        # Transmit data and receive response simultaneously
        # SPI is full-duplex, so data is sent and received at the same time
        received_data = spi.transfer(transmit_data)

        # Print test results
        print("SPI Test:")
        print("  Transmitted data: [0x{:02x}, 0x{:02x}, 0x{:02x}, 0x{:02x}]".format(*transmit_data))
        print("  Received data:    [0x{:02x}, 0x{:02x}, 0x{:02x}, 0x{:02x}]".format(*received_data))

    except Exception as e:
        print(f"SPI Test failed: {e}")
    finally:
        # Ensure SPI resource is released
        try:
            spi.close()
        except:
            pass

if __name__ == "__main__":
    print("Starting SPI Communication Test...\n")
    spi_communication_test()
    print("\nSPI Test completed")

Test Steps

Enter rsetup -> Overlay -> Manage overlays and check the Enable spidev on SPI3 option, then restart the system
Connect the PK6 pin and PK7 pin
Save the code as spi_example.py
Run the test code using sudo python3 spi_example.py

Experimental Phenomenon

The terminal will output the sent and received information, and you can judge whether the SPI loopback test is successful based on the terminal output information.

GPIO Functions​

GPIO Pin Numbering​

GPIO Usage​

Install python-periphery​

GPIO Input​

Hardware Preparation​

Software Preparation​

Test Steps​

Experimental Phenomenon​

GPIO Output​

Hardware Preparation​

Software Preparation​

Test Code​

Test Steps​

Experimental Phenomenon​

PWM Output​

Hardware Preparation​

Software Preparation​

Test Code​

Test Steps​

Experimental Phenomenon​

UART Usage​

Hardware Preparation​

Software Preparation​

Test Code​

Test Steps​

Experimental Phenomenon​

I2C Usage​

Hardware Preparation​

Software Preparation​

Test Code​

Test Steps​

Experimental Phenomenon​

SPI Usage​

Hardware Preparation​

Software Preparation​

Test Code​

Test Steps​

Experimental Phenomenon​

GPIO Functions

GPIO Pin Numbering

GPIO Usage

Install python-periphery

GPIO Input

Hardware Preparation

Software Preparation

Test Steps

Experimental Phenomenon

GPIO Output

Hardware Preparation

Software Preparation

Test Code

Test Steps

Experimental Phenomenon

PWM Output

Hardware Preparation

Software Preparation

Test Code

Test Steps

Experimental Phenomenon

UART Usage

Hardware Preparation

Software Preparation

Test Code

Test Steps

Experimental Phenomenon

I2C Usage

Hardware Preparation

Software Preparation

Test Code

Test Steps

Experimental Phenomenon

SPI Usage

Hardware Preparation

Software Preparation

Test Code

Test Steps

Experimental Phenomenon
