Hardware Information

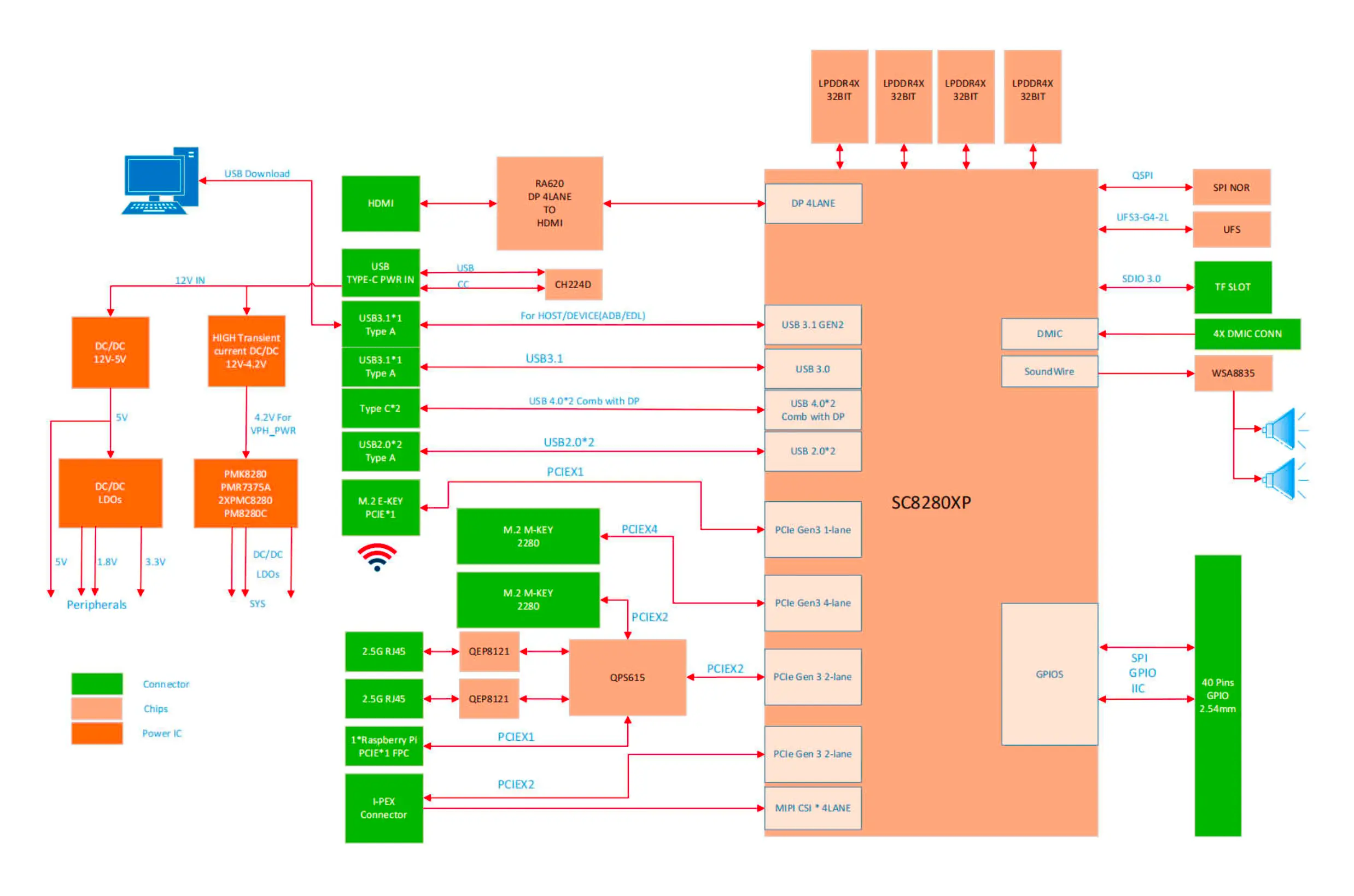

System Block Diagram
Interface Description
| No. | Description | No. | Description | No. | Description |
|---|---|---|---|---|---|
| 1 | 40-pin GPIO header | 2 | EDL button | 3 | LPDDR4X memory |
| 4 | FPC connector | 5 | Qualcomm Snapdragon 8cx Gen 3 (Qualcomm SC8280XP) | 6 | Microphone connector |
| 7 | Power header | 8 | 3.5 mm headphone jack | 9 | USB Type-C power port (20V) |
| 10 | HDMI 2.1 port | 11 | USB 2.0 Type-A port | 12 | UFS module connector |
| 13 | 2x USB-C (DP Alt Mode supported) | 14 | Power button | 15 | Fan connector |
| 16 | M.2 E Key slot | 17 | RTC battery connector | 18 | 2.5GbE Ethernet port |
| 19 | 2x USB 3.2 Gen2 Type-A ports | 20 | M.2 M Key 2280 slot - PCIe 3.0 x2 | 21 | M.2 M Key slot - PCIe 3.0 x4 |
| 22 | microSD card slot |
