Radxa E54C - High-Performance AI Edge Network Computing Device

Product Overview​

Radxa E54C is a high-performance edge AI network computing device designed for smart routing, network storage, edge computing, and AI applications. It features a compact design that integrates powerful networking capabilities and computing power, making it an ideal platform for various network applications and AI edge computing.

Based on the Rockchip RK3582 processor, E54C provides four gigabit Ethernet ports, flexible storage expansion options, and a rich set of interfaces to meet a wide range of needs from simple home networks to complex commercial applications.

Product Appearance​

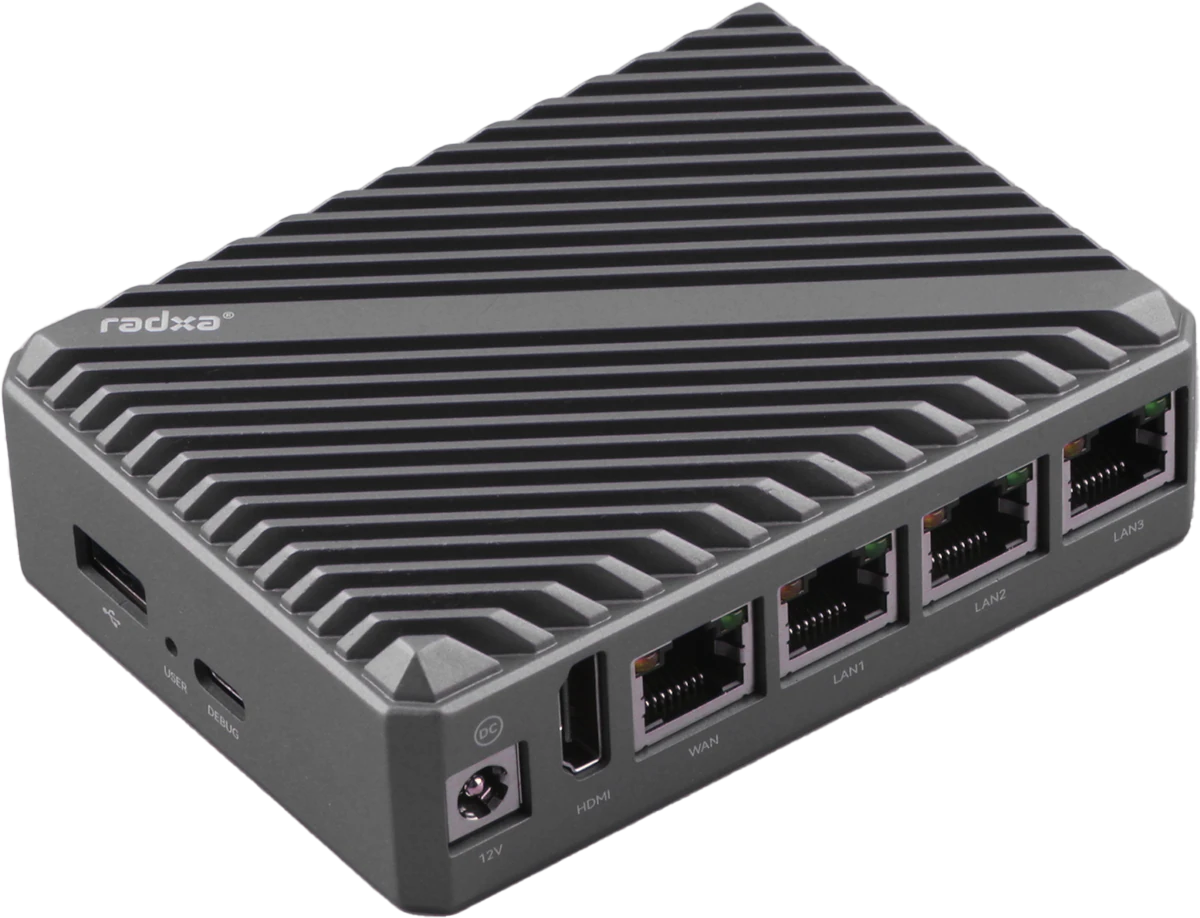

Radxa E54C with aluminum case
E54C aluminum case version provides efficient heat dissipation and robust protection

Port Layout​

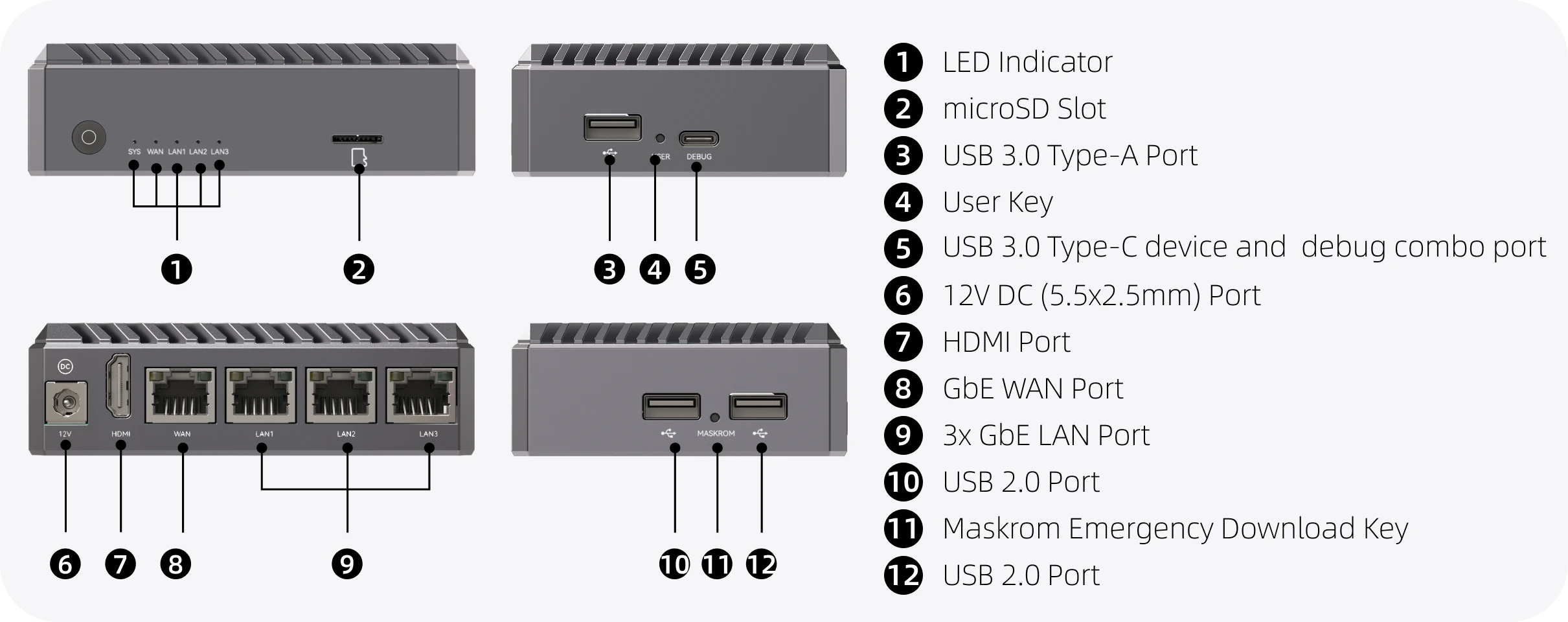

Radxa E54C port layout

Who is E54C Designed For?​

E54C is designed for:

  • Network Engineers and IT Professionals: Requiring high-performance multi-port network devices for network planning and management
  • System Integrators: Seeking reliable network computing platforms for custom solution development
  • Businesses and Small Offices: Needing stable and efficient network infrastructure
  • AI Developers: Utilizing the built-in NPU to develop and deploy edge AI applications
  • Smart Home Enthusiasts: Building advanced networking and automation systems

Purchase Options​

Radxa E54C is available in multiple configurations to meet different needs:

ConfigurationRecommended Use Case
2GB RAMEntry-level routing applications, basic network management
4GB RAMHome/small office router, NAS server
8GB RAMEdge AI computing, multi-WAN load balancing, enterprise-level routing
16GB RAMVideo analytics, edge servers, high-performance computing

All models can be expanded with an M.2 NVMe SSD for storage, providing higher storage performance and reliability.

Key Features​

  • Powerful Processing Performance: Rockchip RK3582 processor, dual-core Cortex-A76 (up to 2.2GHz) and quad-core Cortex-A55 (up to 1.8GHz) 64-bit processor
  • Rich Network Connectivity: Equipped with 4 gigabit Ethernet ports, supporting multi-WAN access, load balancing, and complex network topologies
  • Flexible Storage Solutions: Supports MicroSD card boot, optional onboard eMMC, and M.2 NVMe SSD high-speed storage expansion
  • AI Acceleration Capability: Built-in NPU with computing power up to 5TOPs@INT8, supporting mainstream AI frameworks and inference tasks
  • Multi-functional Interfaces: Provides USB 3.0/2.0 interfaces, HDMI 2.1 output (supporting up to 8K), and GPIO expansion interface
  • Efficient Heat Dissipation Design: Aluminum alloy case provides excellent passive cooling, with optional fan for active cooling
  • Multi-System Support: Fully compatible with Debian, iStoreOS, OpenWrt, and other Linux systems
  • Low Power Design: Optimized power consumption while maintaining high performance, suitable for 24/7 continuous operation

Technical Specifications​

CategorySpecifications
SoCRockchip RK3582, dual-core Cortex-A76 (up to 2.2GHz) and quad-core Cortex-A55 (up to 1.8GHz)
NPUComputing power up to 5TOPs@INT8, supporting mainstream AI inference frameworks
Memory2GB/4GB/8GB/16GB/32GB LPDDR4
Onboard StorageOptional eMMC: 8GB/16GB/32GB/64GB/128GB
Storage ExpansionMicroSD card slot + M.2 M-Key interface (PCIe 2.1), supporting NVMe SSD
Ethernet4 gigabit Ethernet ports (WAN/LAN configurable)
USB Ports1 USB 3.0 Type-A + 2 USB 2.0 Type-A + 1 USB 3.0 Type-C (OTG)
Video OutputHDMI 2.1 interface, supporting up to 8K resolution
GPIO14-pin expansion header, supporting SPI, UART, I2C, and power output
Other InterfacesFan connector, RTC battery connector, power button, Maskrom button, user-defined button
Power SupplyDC 12V/2A, 5.5 x 2.5mm connector
Operating SystemsSupports Debian, iStoreOS, OpenWrt, and other Linux systems
Operating Temperature0°C ~ 70°C (standard version)
Dimensions130 x 85 x 24mm (with case version)

Hardware Interface Layout​

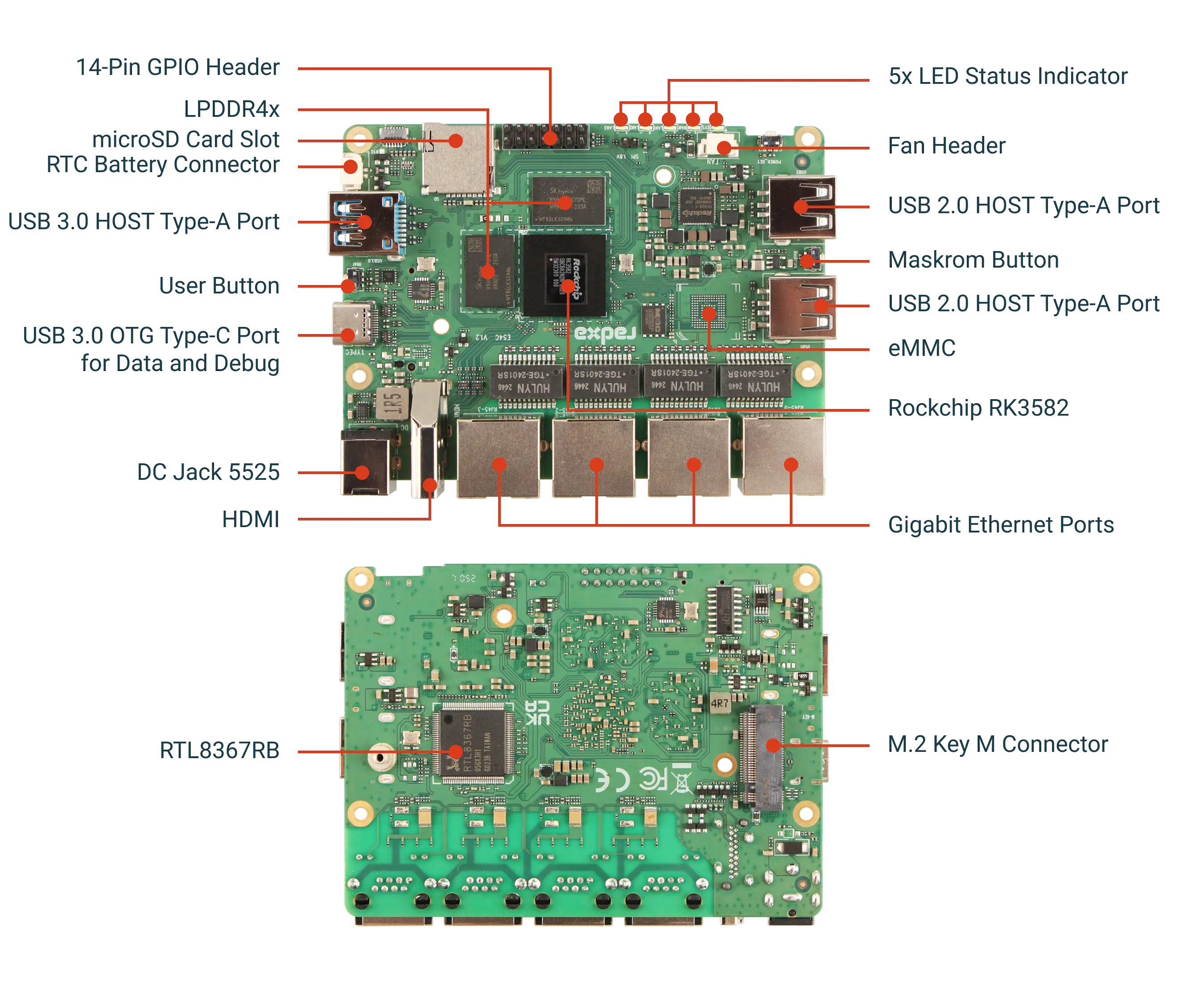

E54C hardware interface layout

The above image shows the main hardware interfaces and component layout of E54C, including:

  1. Four gigabit Ethernet interfaces (RJ45)
  2. USB 3.0/2.0 ports
  3. HDMI 2.1 output port
  4. M.2 NVMe SSD slot
  5. MicroSD card slot
  6. GPIO expansion interface
  7. 12V DC power connector

System Support​

E54C supports multiple operating systems that can be chosen based on different application scenarios:

Debian Linux​

A complete Linux desktop environment, suitable for general computing and development needs:

  • Provides a complete package management system
  • Supports mainstream programming languages and development tools
  • Suitable for application development and testing

iStoreOS​

An intelligent router operating system based on OpenWrt, optimized for network applications:

  • Graphical web management interface, easy to configure
  • Rich network features and application plugins
  • Supports advanced features such as multi-WAN load balancing and smart QoS

OpenWrt​

An open-source router operating system, suitable for highly customized network needs:

  • Lightweight system, efficient operation
  • Flexible network configuration
  • Supports various network services and security features

Application Scenarios​

Smart Network Solutions​

  • Multi-WAN Smart Router: Utilize four gigabit network ports to build multi-WAN access, implementing load balancing and link backup
  • Advanced Firewall: Configure fine-grained access control and traffic monitoring to ensure network security
  • VPN Server/Client: Support mainstream VPN protocols such as OpenVPN and WireGuard to build secure remote access
  • QoS Traffic Control: Optimize bandwidth allocation to ensure critical applications get priority

Edge AI Applications​

  • Intelligent Monitoring System: Utilize the built-in NPU for video analysis and object detection
  • Predictive Maintenance: Process sensor data for edge analysis and anomaly detection
  • Natural Language Processing: Deploy lightweight speech recognition and processing models
  • Machine Vision: Implement computer vision applications such as image classification and object detection

Network Storage and Multimedia​

  • NAS Server: Build high-performance network storage solutions using M.2 NVMe SSD
  • Media Server: Set up media servers such as Plex and Jellyfin
  • Content Caching: Deploy local content caching to optimize network traffic

IoT Management​

  • Smart Home Control Center: Manage various smart home devices and automation scenarios
  • IoT Gateway: Connect and manage multiple IoT devices and sensors
  • Data Collection and Analysis: Collect sensor data and perform local processing and analysis
