Fogwise® AIRbox Q900
Product Introduction
Fogwise® AIRbox Q900 is an embedded AI micro-server that supports up to 200 TOPS@INT8 sparse computing power, multiple precisions (INT8, FP16, FP32), deployment of various mainstream AI models such as private GPT and text-to-image, and features a heat-dissipating aluminum alloy enclosure for deployment in harsh environments.
Product Image
| Product Image | No. | View | No. | View | No. | View |
|---|---|---|---|---|---|---|
| Fogwise® AIRbox Q900 | ① | Top View | ② | Side View 1 | ③ | Side View 2 |
Product Specifications
| Model | Fogwise® AIRbox Q900 |
|---|---|
| CPU | Octa-core Kryo 6th Gen (Cortex-A78C based) architecture @2.36 GHz |
| GPU | Adreno 663 Graphics Processor • Supports secure general-purpose GPU computing, 1.2 TFLOPS FP32 computing power • Supports Vulkan 1.2, OpenGL ES 3.2, OpenCL 2.0 FP • Supports Adreno NN Direct |
| MCU | Independent quad-core Cortex-R52 @ 1.85GHz |
| NPU | Integrated Hexagon Tensor Processor (HTP): Includes quad-vector extensions (HVX) and dual-matrix coprocessors (HMX) AI Computing Power: 200 TOPS@INT8 (sparse computing power) |
| Video Codec | Adreno VPU 765 Decoding: • Supports AV1 / HEVC / H.264 / H.265 / VP9 / MPEG2 formats • 1x 8Kp60 / 2x 8Kp30 / 4x 4Kp60 / 8x 4Kp30 / 16x 1080p60 / 32x 1080p30 Encoding: • Supports H.264 / H.265 / HEIF / HEIC formats • 2x 4Kp60 / 4x 4Kp30 / 8x 1080p60 / 16x 1080p30 Can simultaneously run 2x 4Kp60 decode + 2x 4Kp60 encode |
| Memory | 36GB 96-bit LPDDR5@6400MT/s (with ECC support) |
| Storage | 1x Onboard 32MB SPI Flash 1x UFS/eMMC module interface 1x Onboard 128GB UFS3.1 (Gear4 2-Lane) 1x M.2 M Key slot (PCIe Gen4 4-Lane) |
| Display | 1x Standard HDMI 2.0 (supports up to 4K@60fps) |
| Wired Network | 2 x RJ45 2.5G Ethernet ports (with TSN real-time Ethernet support) |
| Wireless Network | 1x Mini PCIe slot • Supports Wi-Fi 6 / BT 5.4 • Supports 4G/5G Mini PCIe module for 4G/5G mobile network support 1x Nano SIM card slot Supports up to 3 external antennas |
| USB Ports | 1x USB 3.1 Gen2 HOST Type-A port 1x USB 3.1 Gen2 OTG Type-A port 1x Type-C console |
| Power Supply | DC 12V/5.4A (5.5x2.5mm) power connector |
| Other Interfaces | 1x PWM fan connector 1x RTC battery connector 1x Emergency Download (EDL) button 1x Power button |
| Operating System | Supports Ubuntu, Yocto, and other operating systems |
| Dimensions | 104 x 84 x 45 mm |
| Operating Temperature | 0℃ ~ 60℃ |
| Cooling | Aluminum alloy enclosure with built-in PWM speed control fan |

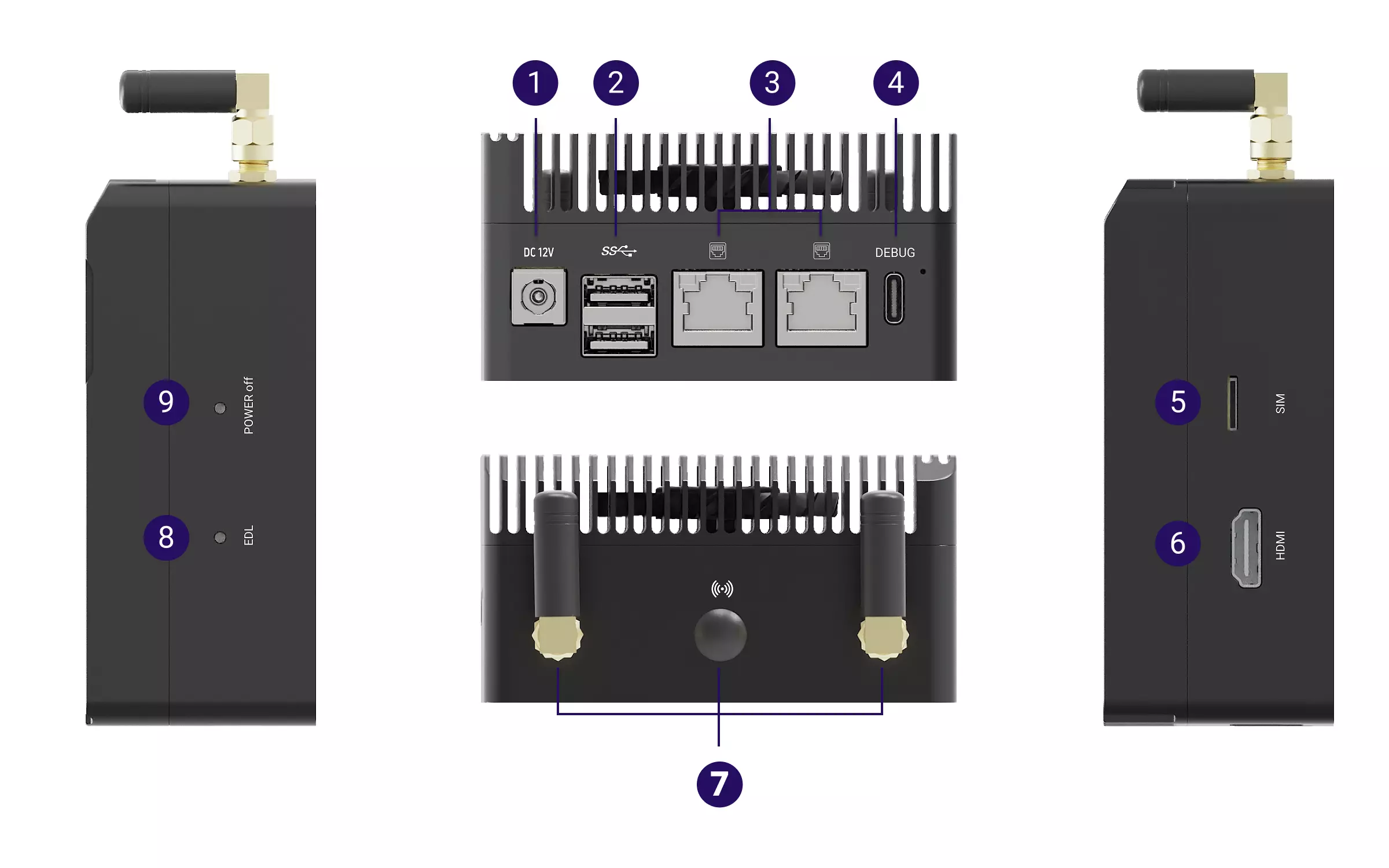

Interface Overview
| No. | Description | No. | Description | No. | Description |
|---|---|---|---|---|---|
| 1 | 12V DC Power Input | 4 | USB Type-C Console | 7 | 3x External Antenna Connectors |
| 2 | Top: USB 3.1 Gen2 HOST Type-A port Bottom: USB 3.1 Gen2 OTG Type-A port | 5 | Nano SIM Card Slot | 8 | Emergency Download (EDL) Button |
| 3 | 2x 2.5G RJ45 Ethernet Ports | 6 | Standard HDMI 2.0 | 9 | Power Button |
Chip Block Diagram
IQ-9075 Chip Block Diagram
System Block Diagram
Fogwise® AIRbox Q900 Hardware System Block Diagram
