Model Inference

Demonstrates how to run TensorFlow Lite model inference on the DSP using the QRB ROS NN Inference node, including image preprocessing, inference, and result visualization.

Prerequisites

• QIR SDK installed
• A converted YOLOv8 single-batch model, see Model Export

Method 1: Out-of-the-Box

Use the APT-installed inference node, building only the pre/post-processing test nodes from source.

Step 1: Install the Inference Node

radxa@airbox$

sudo apt install -y ros-jazzy-qrb-ros-nn-inference

Step 2: Clone Repository and Prepare Test Data

radxa@airbox$

mkdir -p ~/ros-ws/src && cd ~/ros-ws/src
git clone https://github.com/qualcomm-qrb-ros/qrb_ros_nn_inference

Download the test image:

wget -P ~/ros-ws/src/qrb_ros_nn_inference/test/qrb_ros_pre_process/image/ \
  https://ultralytics.com/images/bus.jpg

Convert the test image to model input format:

radxa@airbox$

python3 ~/ros-ws/src/qrb_ros_nn_inference/test/qrb_ros_post_process/scripts/yolov8_input_pre_process.py

Step 3: Configure Model and Image Paths

Edit ~/ros-ws/src/qrb_ros_nn_inference/test/qrb_ros_post_process/launch/nn_node_test.launch.py and update:

• image_path: absolute path to bus.raw
• model_path: absolute path to the YOLOv8 model

Step 4: Build Pre/Post-Processing Nodes

radxa@airbox$

cd ~/ros-ws
source /opt/ros/jazzy/setup.bash
rm -f ./src/qrb_ros_nn_inference/test/qrb_ros_post_process/COLCON_IGNORE
rm -f ./src/qrb_ros_nn_inference/test/qrb_ros_pre_process/COLCON_IGNORE
colcon build --packages-select qrb_ros_pre_process qrb_ros_post_process \
  --cmake-args -DBUILD_TESTING=OFF

Step 5: Run Inference

radxa@airbox$

cd ~/ros-ws
source /opt/ros/jazzy/setup.bash
source install/local_setup.bash
ros2 launch qrb_ros_post_process nn_node_test.launch.py

The log should show libqrb_ros_inference_node.so loaded from /opt/ros/jazzy/lib/, with Inference execute Successfully! printed after successful inference.

Press Ctrl + C to stop after at least one inference completes.

Step 6: Visualize Results

radxa@airbox$

python3 ~/ros-ws/src/qrb_ros_nn_inference/test/qrb_ros_post_process/scripts/qrb_ros_yolo_detection_visualizer.py \
  --original_image ~/ros-ws/src/qrb_ros_nn_inference/test/qrb_ros_pre_process/image/bus.jpg

Results at ~/ros-ws/src/qrb_ros_nn_inference/test/qrb_ros_post_process/inference_result/detection_result.jpg.

Method 2: Build from Source

Build the complete inference pipeline from source: inference manager, NN inference node, Tensor message interfaces, and pre/post-processing.

Step 1: Install Dependencies

radxa@airbox$

sudo apt install -y software-properties-common colcon \
  libtensorflow-lite-c-qcom1 libtensorflow-lite-qcom-dev \
  libqnn-dev libqnn1

Step 2: Clone Repositories

radxa@airbox$

mkdir -p ~/qrb_ros_ws/src && cd ~/qrb_ros_ws/src
git clone https://github.com/qualcomm-qrb-ros/qrb_ros_nn_inference
git clone https://github.com/qualcomm-qrb-ros/qrb_ros_interfaces

Step 3: Fix QNN Header Path

The following verification is based on QAIRT 2.46. In this version, QNN headers are installed under /usr/include/QNN, which the repository's CMake does not include. Add the following to ~/qrb_ros_ws/src/qrb_ros_nn_inference/qrb_inference_manager/CMakeLists.txt:

include_directories(
  include
  /usr/include/QNN
)

Step 4: Build

radxa@airbox$

cd ~/qrb_ros_ws
source /opt/ros/jazzy/setup.bash
colcon build --packages-up-to qrb_ros_nn_inference \
  --allow-overriding qrb_ros_tensor_list_msgs qrb_inference_manager qrb_ros_nn_inference \
  --cmake-args -DBUILD_TESTING=OFF

Step 5: Verify Overlay

radxa@airbox$

source /opt/ros/jazzy/setup.bash
source ~/qrb_ros_ws/install/setup.bash
ros2 pkg prefix qrb_ros_nn_inference

Should output ~/qrb_ros_ws/install/qrb_ros_nn_inference, confirming the source-built version is used.

Step 6: Run Inference

radxa@airbox$

source /opt/ros/jazzy/setup.bash
source ~/qrb_ros_ws/install/setup.bash
ros2 launch qrb_ros_post_process nn_node_test.launch.py

The log should show libqrb_ros_inference_node.so loaded from ~/qrb_ros_ws/install/.

After stopping with Ctrl + C, the visualization step is identical to Method 1.

Verified Results

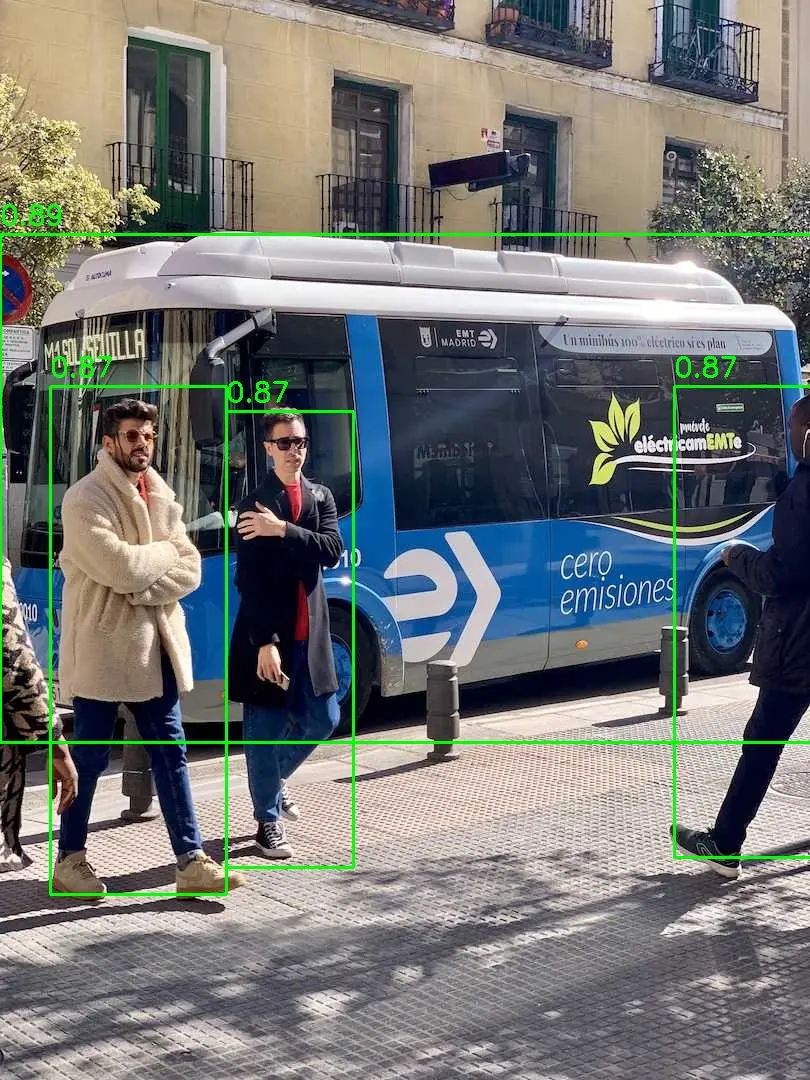

Both methods produce byte-identical inference outputs (SHA-256 match). For the bus.jpg test image at confidence 0.5, NMS retains 4 detections: 1 bus and 3 persons.
