YOLOv8 Object Detection

Run YOLOv8-N object detection with the official Ultralytics bus.jpg. The sample runs inference on the DSP through the QNN HTP backend and publishes both structured detections and an image with rendered bounding boxes.

This page covers local image input only. QRB, Orbbec, and USB camera input were not verified.

Source Build Required

The qrb_ros_nn_inference 1.1.1 and qrb_ros_cv_tensor_common_process 0.0.0 packages currently available on Q900 cannot directly run a version 3 context binary exported by current QAI Hub. Build the interfaces, inference, tensor processing, and sample sources in one workspace so all components use the same TensorList ABI.

Pipeline

  -> NV12 image publisher -> /image_raw
  -> resize, normalization, and NHWC float32 conversion
  -> /qrb_inference_input_tensor
  -> QNN YOLOv8 inference
  -> /yolo_detect_tensor_output
  -> NMS and COCO label mapping
  -> /yolo_detect_result
  -> bounding-box overlay
  -> /yolo_detect_overlay

ROS 2 Topics

Topic	Type	Publisher
/image_raw	sensor_msgs/msg/Image	Local NV12 image publisher
/qrb_inference_input_tensor	qrb_ros_tensor_list_msgs/msg/TensorList	yolo_preprocess_node
/yolo_detect_tensor_output	qrb_ros_tensor_list_msgs/msg/TensorList	nn_inference_node
/yolo_detect_result	vision_msgs/msg/Detection2DArray	yolo_detection_postprocess_node
/yolo_detect_overlay	sensor_msgs/msg/Image	yolo_detection_overlay_node

Prerequisites

• QIR SDK installed
• GitHub and Ultralytics access from the Q900
• At least 1 GB free on the Q900

Export the Model on the Host

Generate the QCS9075 context binary through QAI Hub.

Step 1: Install QAI Hub Models

host$

python3 -m venv ~/venv_qaihub
source ~/venv_qaihub/bin/activate
pip install qai-hub-models

Step 2: Configure QAI Hub

Obtain an API token from the account settings page in Qualcomm AI Hub:

host$

source ~/venv_qaihub/bin/activate
qai-hub configure --api_token <your-api-token>

Step 3: Export the QCS9075 Model

Use Dragonwing IQ-9075 EVK as the target device:

host$

source ~/venv_qaihub/bin/activate
python3 -m qai_hub_models.models.yolov8_det.export \
  --target-runtime qnn_context_binary \
  --device "Dragonwing IQ-9075 EVK" \
  --device-os 1.7 \
  --skip-profiling \
  --skip-inferencing \
  --output-dir ~/qai_hub_models/yolov8_det_qcs9075

This command downloads the YOLOv8-N weights, compiles the model on QAI Hub, and downloads yolov8_det.bin.

Step 4: Transfer the Model and Labels

Locate the exported model and the coco8.yaml supplied by Ultralytics:

host$

source ~/venv_qaihub/bin/activate
MODEL_PATH=$(find ~/qai_hub_models/yolov8_det_qcs9075 \
  -type f -name yolov8_det.bin -print -quit)
LABEL_PATH=$(python3 -c \
  'import pathlib, ultralytics; print(pathlib.Path(ultralytics.__file__).parent / "cfg/datasets/coco8.yaml")')
test -n "$MODEL_PATH" && test -f "$LABEL_PATH"

scp "$MODEL_PATH" <device-user>@<device-ip>:/tmp/yolov8_det_qcs9075.bin
scp "$LABEL_PATH" <device-user>@<device-ip>:/tmp/coco8.yaml

Install both files on the Q900:

radxa@airbox$

sudo install -d -m 0755 /opt/model
sudo install -m 0644 /tmp/yolov8_det_qcs9075.bin \
  /opt/model/yolov8_det_qcs9075.bin
sudo install -m 0644 /tmp/coco8.yaml /opt/coco8.yaml

Build from Source

Step 1: Install Dependencies

radxa@airbox$

sudo apt install -y \
  ros-dev-tools \
  ros-jazzy-sample-object-detection \
  ros-jazzy-qrb-ros-cv-tensor-common-process \
  ros-jazzy-image-publisher

Step 2: Clone the Source

Create a workspace and place all related repositories under the same src directory:

radxa@airbox$

mkdir -p ~/qrb_ros_ws/src && cd ~/qrb_ros_ws/src
git clone https://github.com/qualcomm-qrb-ros/qrb_ros_interfaces.git
git clone https://github.com/qualcomm-qrb-ros/qrb_ros_nn_inference.git
git clone https://github.com/qualcomm-qrb-ros/qrb_ros_tensor_process.git
git clone https://github.com/qualcomm-qrb-ros/qrb_ros_samples.git

Step 3: Build Inference and Sample Packages

radxa@airbox$

cd ~/qrb_ros_ws
source /opt/ros/jazzy/setup.bash
colcon build \
  --packages-up-to sample_object_detection \
  --allow-overriding qrb_ros_tensor_list_msgs

Step 4: Build the Image Preprocessor

sample_object_detection does not declare a source dependency on the image preprocessor, so build it explicitly:

radxa@airbox$

cd ~/qrb_ros_ws
source /opt/ros/jazzy/setup.bash
source install/setup.bash
colcon build \
  --packages-select qrb_ros_cv_tensor_common_process \
  --allow-overriding qrb_ros_tensor_list_msgs

Prepare the Test Image

Download the official Ultralytics test image:

radxa@airbox$

mkdir -p ~/qrb_ros_ws/input
wget https://ultralytics.com/images/bus.jpg \
  -O ~/qrb_ros_ws/input/bus.jpg
echo "c02019c4979c191eb739ddd944445ef408dad5679acab6fd520ef9d434bfbc63  $HOME/qrb_ros_ws/input/bus.jpg" | \
  sha256sum --check

Create the Static Image Publisher

Create ~/qrb_ros_ws/nv12_image_publisher.py to resize the JPEG to 640 x 640 and convert it to NV12:

import sys

import cv2
import numpy as np
import rclpy
from rclpy.node import Node
from sensor_msgs.msg import Image


class Nv12ImagePublisher(Node):
    def __init__(self, image_path):
        super().__init__("nv12_image_publisher")
        image = cv2.imread(image_path, cv2.IMREAD_COLOR)
        if image is None:
            raise RuntimeError(f"Failed to load image: {image_path}")
        image = cv2.resize(image, (640, 640), interpolation=cv2.INTER_LINEAR)

        height, width = image.shape[:2]
        i420 = cv2.cvtColor(image, cv2.COLOR_BGR2YUV_I420).reshape(-1)
        y_size = width * height
        chroma_size = y_size // 4
        y = i420[:y_size]
        u = i420[y_size : y_size + chroma_size]
        v = i420[y_size + chroma_size : y_size + 2 * chroma_size]
        uv = np.empty(y_size // 2, dtype=np.uint8)
        uv[0::2] = u
        uv[1::2] = v

        self.message = Image()
        self.message.header.frame_id = "camera"
        self.message.height = height
        self.message.width = width
        self.message.encoding = "nv12"
        self.message.is_bigendian = False
        self.message.step = width
        self.message.data = np.concatenate((y, uv)).tobytes()

        self.publisher = self.create_publisher(Image, "/image_raw", 10)
        self.timer = self.create_timer(0.1, self.publish_image)
        self.get_logger().info(
            f"Publishing {image_path} as nv12 ({width}x{height})"
        )

    def publish_image(self):
        self.message.header.stamp = self.get_clock().now().to_msg()
        self.publisher.publish(self.message)


def main():
    if len(sys.argv) != 2:
        raise SystemExit("usage: nv12_image_publisher.py <image-path>")
    rclpy.init()
    node = Nv12ImagePublisher(sys.argv[1])
    try:
        rclpy.spin(node)
    except KeyboardInterrupt:
        pass
    finally:
        node.destroy_node()
        if rclpy.ok():
            rclpy.shutdown()


if __name__ == "__main__":
    main()

Create the Image Input Launch File

Create ~/qrb_ros_ws/launch_with_image_publisher.py:

from launch import LaunchDescription
from launch.actions import DeclareLaunchArgument, ExecuteProcess
from launch.substitutions import LaunchConfiguration
from launch_ros.actions import ComposableNodeContainer
from launch_ros.descriptions import ComposableNode


def generate_launch_description():
    declared_args = [
        DeclareLaunchArgument("image_path"),
        DeclareLaunchArgument("publisher_script"),
        DeclareLaunchArgument("model"),
        DeclareLaunchArgument("label_file"),
        DeclareLaunchArgument("score_thres", default_value="0.7"),
        DeclareLaunchArgument("iou_thres", default_value="0.5"),
    ]

    image_publisher = ExecuteProcess(
        cmd=[
            "python3",
            LaunchConfiguration("publisher_script"),
            LaunchConfiguration("image_path"),
        ],
        output="screen",
    )

    preprocess = ComposableNode(
        package="qrb_ros_cv_tensor_common_process",
        plugin="qrb_ros::cv_tensor_common_process::CvTensorCommonProcessNode",
        name="yolo_preprocess_node",
        parameters=[
            {"target_res": "640x640"},
            {"normalize": True},
            {"tensor_fmt": "nhwc"},
            {"data_type": "float32"},
        ],
        remappings=[
            ("input_image", "/image_raw"),
            ("encoded_image", "qrb_inference_input_tensor"),
        ],
    )

    inference = ComposableNode(
        package="qrb_ros_nn_inference",
        plugin="qrb_ros::nn_inference::QrbRosInferenceNode",
        name="nn_inference_node",
        parameters=[
            {
                "backend_option": "/usr/lib/libQnnHtp.so",
                "model_path": LaunchConfiguration("model"),
            }
        ],
        remappings=[
            ("qrb_inference_output_tensor", "yolo_detect_tensor_output"),
        ],
    )

    postprocess = ComposableNode(
        package="qrb_ros_yolo_process",
        plugin="qrb_ros::yolo_process::YoloDetPostProcessNode",
        name="yolo_detection_postprocess_node",
        parameters=[
            {"label_file": LaunchConfiguration("label_file")},
            {"score_thres": LaunchConfiguration("score_thres")},
            {"iou_thres": LaunchConfiguration("iou_thres")},
        ],
    )

    overlay = ComposableNode(
        package="qrb_ros_yolo_process",
        plugin="qrb_ros::yolo_process::YoloDetOverlayNode",
        name="yolo_detection_overlay_node",
        parameters=[{"target_res": "640x640"}],
    )

    container = ComposableNodeContainer(
        name="yolo_node_container",
        namespace="",
        package="rclcpp_components",
        executable="component_container",
        composable_node_descriptions=[overlay, postprocess, inference, preprocess],
        output="screen",
    )

    return LaunchDescription(declared_args + [image_publisher, container])

Run

radxa@airbox$

cd ~/qrb_ros_ws
source /opt/ros/jazzy/setup.bash
source install/setup.bash
export ROS_DOMAIN_ID=123
ros2 launch ~/qrb_ros_ws/launch_with_image_publisher.py \
  publisher_script:="$HOME/qrb_ros_ws/nv12_image_publisher.py" \
  image_path:="$HOME/qrb_ros_ws/input/bus.jpg" \
  model:=/opt/model/yolov8_det_qcs9075.bin \
  label_file:=/opt/coco8.yaml

Expected Output

The model initializes and repeatedly performs inference:

Context binary info (V3/FCB)
Initialize Qnn graph from binary file successfully
Inference init successfully!
Got model input data, start executing inference...
Inference execute successfully!
Publish the inference result...

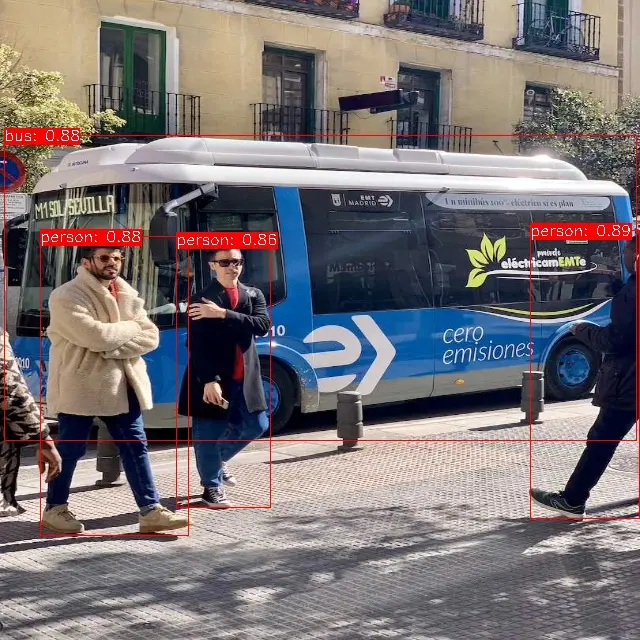

The /yolo_detect_overlay captured on the device is shown below:

Validation

Check the detection and overlay topics from another terminal:

radxa@airbox$

cd ~/qrb_ros_ws
source /opt/ros/jazzy/setup.bash
source install/setup.bash
export ROS_DOMAIN_ID=123
ros2 topic info /yolo_detect_result -v
ros2 topic info /yolo_detect_overlay -v
ros2 topic echo /yolo_detect_result --once

At the default score threshold of 0.7, the test image should contain four detections:

person  0.8867
person  0.8794
bus     0.8755
person  0.8647

/yolo_detect_overlay should be a 640 x 640 bgr8 image. For graphical inspection, start rqt in a ROS 2 Jazzy desktop environment using the same ROS_DOMAIN_ID as the Q900. Select Plugins > Visualization > Image View, then select /yolo_detect_overlay.

Stop

Press Ctrl + C in the terminal running the sample.

Limitations

• Only local image input was verified. QRB, Orbbec, and USB cameras were not tested.
• The input image is resized to 640 x 640; bounding-box coordinates refer to the resized image.
• Cross-device rqt display was not verified. Only local Q900 inference, detection messages, and overlay publication were validated.
• The related repositories must be built from source. Mixing Debian and source versions of TensorList causes an ABI incompatibility.
