MIPI DSI Interface

Screen Name	Resolution
Radxa Display 8 HD	1280x800 pixels
Radxa Display 10HD	1200x1920 pixels
Raspberry Pi 7 inch Touchscreen	800 x 480 pixels

Accessory Usage

Radxa 8-inch HD Display

• Connection

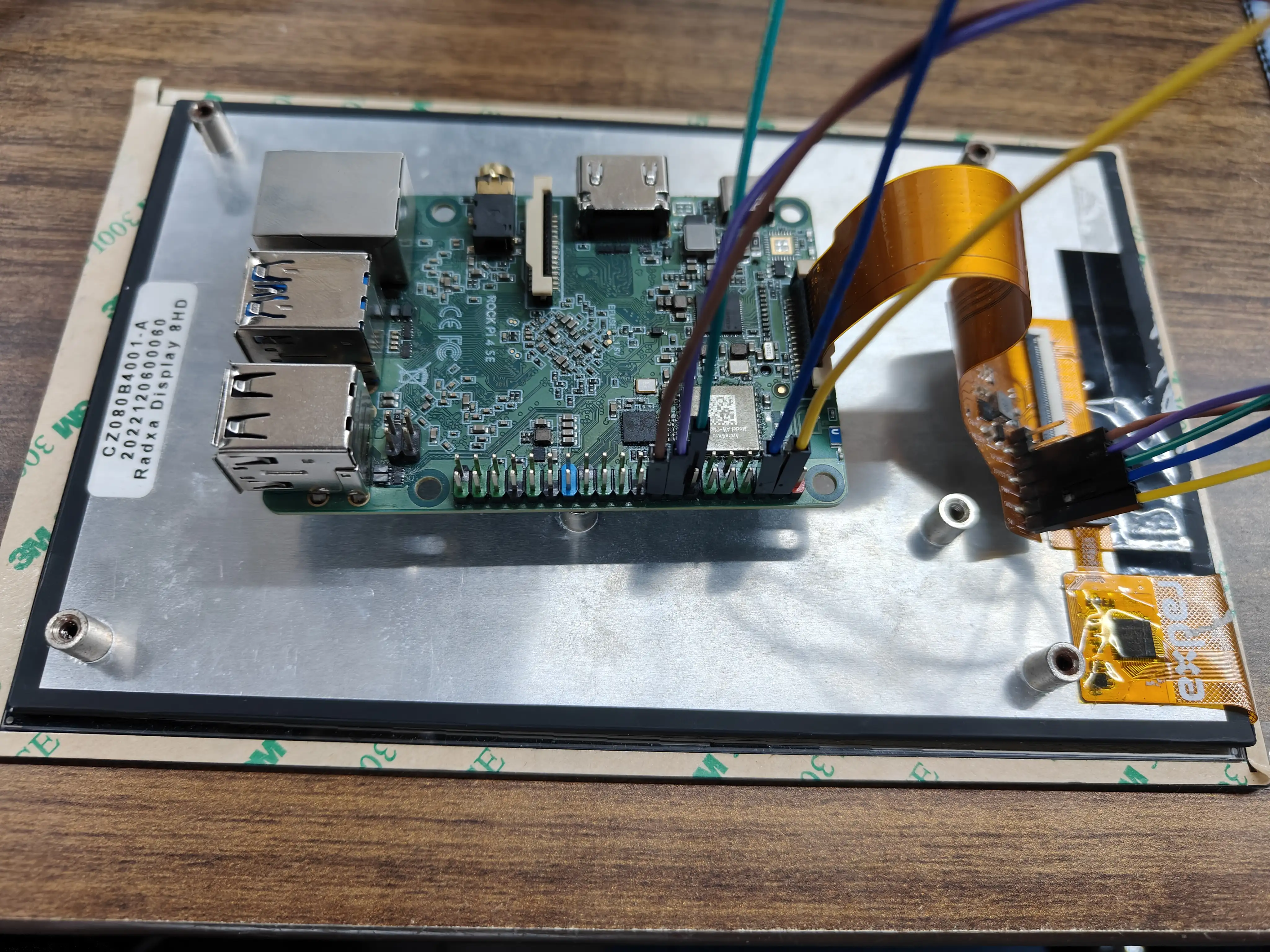

  Connect ROCK 4A/4A+/4B/4B+/4SE through the FPC cable as shown:



• Enable Overlay

  1. Open the Kconsole terminal via the Application Launcher in the lower left corner and run the rsetup command:

   radxa@rock-4se:~$ rsetup

  2. Enable Overlay by Device Tree Configuration .
  tip

  Please enable [] Enable Radxa Display 8HD Overlay。
  Exit and reboot after enabling the successful display of [*] Enable Radxa Display 8HD for the configuration to take effect.

  3. Reboot

• Test

  After reboot, Radxa 8-inch HD Display is able to display the system screen and supports touch.

Raspberry Pi 7-inch Touchscreen

• Connection

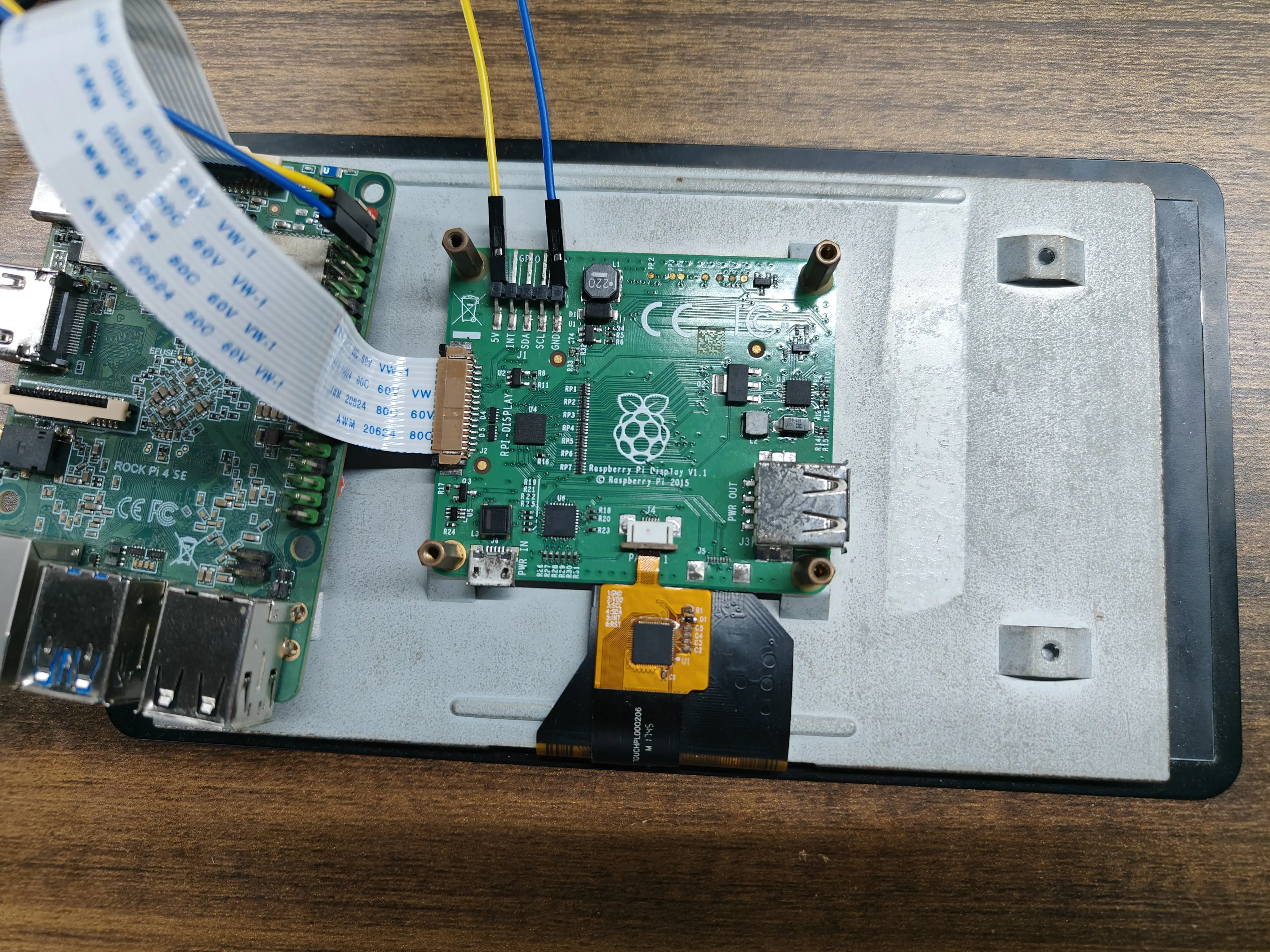

  Connect ROCK 4A/4A+/4B/4B+/4SE through the FPC cable as shown:



• Enable Overlay

  1. Open the Kconsole terminal via the Application Launcher in the lower left corner and run the rsetup command:

   radxa@rock-4se:~$ rsetup

  2. Enable Overlay by Device Tree Configuration .
  tip

  Please enable [] Enable Raspberry Pi 7-inch Touchscreen Overlay。
  Exit and reboot after enabling the successful display of [*] Enable Raspberry Pi 7-inch Touchscreen for the configuration to take effect.

  3. Reboot

• Test

  After reboot, Raspberry Pi 7-inch Touchscreen is able to display the system screen and supports touch.
