Hardware Information

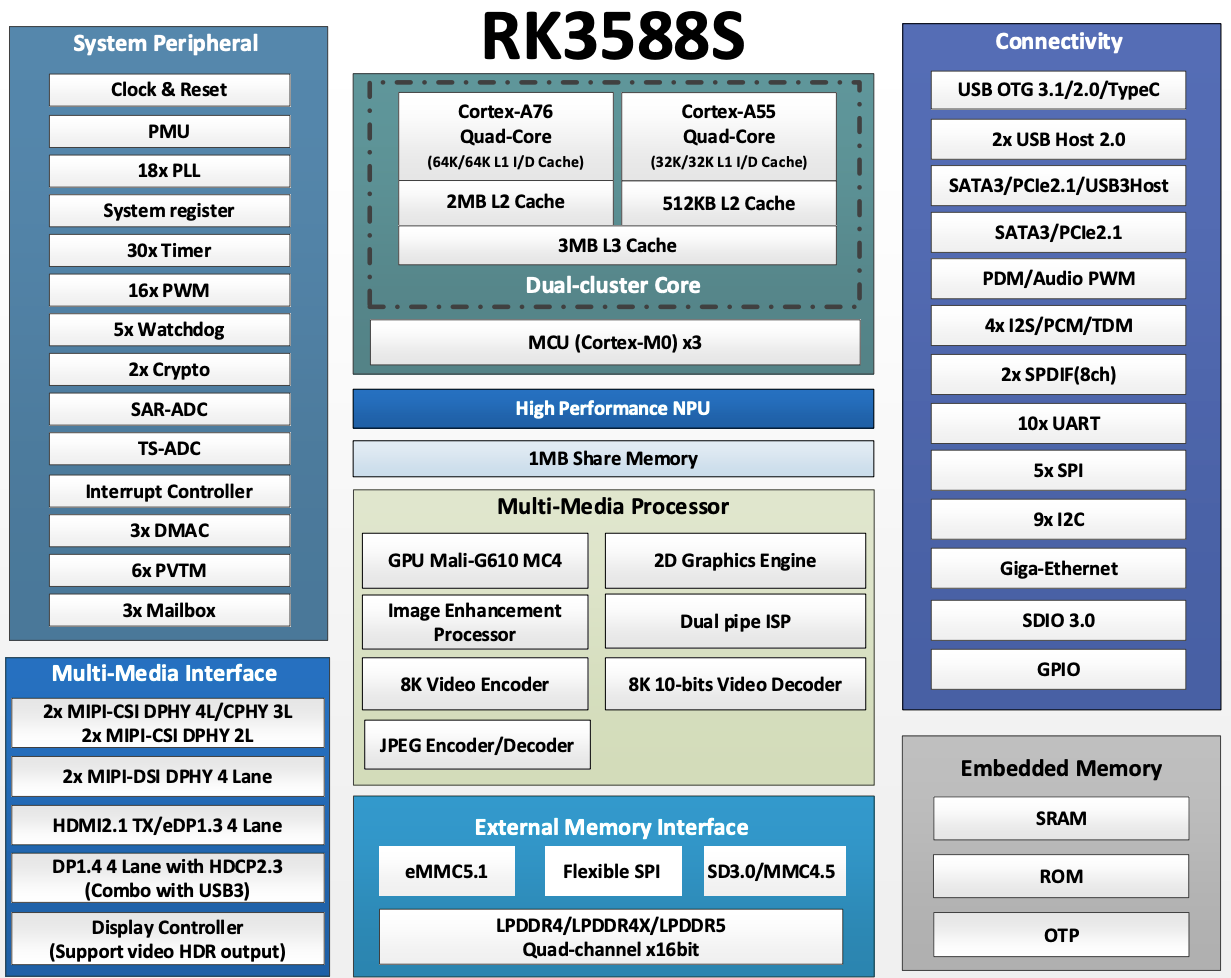

Chip Block Diagram
Interface Description
- Radxa NX5
- Radxa NX5 IO Board
- Radxa NX5 Development Kit
| No. | Description | No. | Description | No. | Description |
|---|---|---|---|---|---|
| 1 | LPDDR4X | 2 | Rockchip RK3588S | 3 | Onboard eMMC |
| 4 | 260-pin SO-DIMM | 5 | SPI Flash |
| No. | Description | No. | Description | No. | Description |
|---|---|---|---|---|---|
| 1 | 2x USB 3.1 Gen1 Type-A | 2 | Top: DP output Bottom: HDMI output | 3 | DC5525 power jack (5V input) |
| 4 | Fan header | 5 | MIPI camera interface | 6 | MIPI camera interface |
| 7 | Power button | 8 | Maskrom button | 9 | microSD card slot |
| 10 | M.2 E Key 2230 slot | 11 | 40-pin GPIO header | 12 | 260-pin SO-DIMM slot |
| 13 | micro USB interface (OTG) | 14 | Gigabit Ethernet port | 15 | 2x USB 3.1 Gen1 Type-A |
| No. | Description | No. | Description |
|---|---|---|---|
| 1 | Radxa NX5 IO Board | 2 | Radxa NX5 |
LED Indicators
- Radxa NX5
The Radxa NX5 has one system status indicator LED. A solid green light indicates normal power supply, and blinking green indicates the system has booted normally.
- Radxa NX5 IO Board
The Radxa NX5 IO Board has a power indicator LED and a system status indicator LED. A solid green power indicator LED indicates normal power supply, and blinking blue status indicator LED indicates the system has booted normally.
