MediaPipe-Hand-Detection 示例

此文档讲述使用 QAI AppBuilder Python API 利用 Qualcomm® Hexagon™ Processor (NPU) 推理 MediaPipe-Hand-Detection 手部姿态识别模型。

示例支持设备

设备	SoC
Fogwise® AIRbox Q900	QCS9075

安装 QAI AppBuilder

提示

1. 请根据 QAI AppBuilder 安装方法 安装 QAI AppBuilder。

2. 请根据 创建 ADSP 环境变量 配置 ADSP 环境变量。

运行示例

安装依赖

Device

pip3 install requests tqdm qai-hub py3_wget opencv-python torch torchvision matplotlib easyocr qai_hub_models pygame

运行脚本

• 进入示例目录

  QCS9075

  Device

  cd ai-engine-direct-helper/samples/python

• 准备输入图片，这里以以下图片为输入示例



  input image

• 执行推理

  Device

  python3 mediapipe_hand/mediapipe_hand.py --imagefile ./mediapipe_hand/hand.jpg

  $ python3 mediapipe_hand/mediapipe_hand.py --imagefile ./mediapipe_hand/hand.jpg
  /mnt/ssd/qualcomm/702/zzf_fork/test/ai-engine-direct-helper/.venv/lib/python3.12/site-packages/pygame/pkgdata.py:25: UserWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html. The pkg_resources package is slated for removal as early as 2025-11-30. Refrain from using this package or pin to Setuptools<81.
    from pkg_resources import resource_stream, resource_exists
  pygame 2.6.1 (SDL 2.28.4, Python 3.12.3)
  Hello from the pygame community. https://www.pygame.org/contribute.html
  Press ESC key to exit if you are opening camera app.
       0.0ms [WARNING]  <W> Initializing HtpProvider

  /prj/qct/webtech_scratch20/mlg_user_admin/qaisw_source_repo/rel/qairt-2.37.1/point_release/SNPE_SRC/avante-tools/prebuilt/dsp/hexagon-sdk-5.5.5/ipc/fastrpc/rpcmem/src/rpcmem_android.c:38:dummy call to rpcmem_init, rpcmem APIs will be used from libxdsprpc
       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

     110.2ms [WARNING] Time: Read model file to memory. 2.70

       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

     133.4ms [WARNING] Time: contextCreateFromBinary. 23.04

     133.4ms [WARNING] Time: UnmapViewOfFile. 0.00

     133.9ms [WARNING] Time: model_initialize hand_detector 133.82

     191.3ms [WARNING] Time: Read model file to memory. 3.24

       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

     204.0ms [WARNING] Time: contextCreateFromBinary. 12.63

     204.1ms [WARNING] Time: UnmapViewOfFile. 0.00

     205.1ms [WARNING] Time: model_initialize landmark_detector 17.40

     242.5ms [WARNING] Time: model_inference hand_detector 2.86

     255.1ms [WARNING] Time: model_inference landmark_detector 2.10

  /mnt/ssd/qualcomm/702/zzf_fork/test/ai-engine-direct-helper/samples/python/mediapipe_hand/mediapipe_hand.py:906: DeprecationWarning: 'mode' parameter is deprecated and will be removed in Pillow 13 (2026-10-15)
    out_image = Image.fromarray(pred_image[0], "RGB")

  Demo image display is disabled by default for remote servers. To override, set `QAIHM_ALWAYS_DISPLAY_OUTPUT=1` in your environment.

  Saving image to /mnt/ssd/qualcomm/702/zzf_fork/test/ai-engine-direct-helper/samples/python/build/image.png
       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

     314.1ms [WARNING] Time: model_destroy hand_detector 11.84

   <W> Logs will be sent to the system's default channel
       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

       0.0ms [WARNING]  <W> This META does not have Alloc2 Support

  /prj/qct/webtech_scratch20/mlg_user_admin/qaisw_source_repo/rel/qairt-2.37.1/point_release/SNPE_SRC/avante-tools/prebuilt/dsp/hexagon-sdk-5.5.5/ipc/fastrpc/rpcmem/src/rpcmem_android.c:42:dummy call to rpcmem_deinit, rpcmem APIs will be used from libxdsprpc
     389.4ms [WARNING] Time: model_destroy landmark_detector 75.05

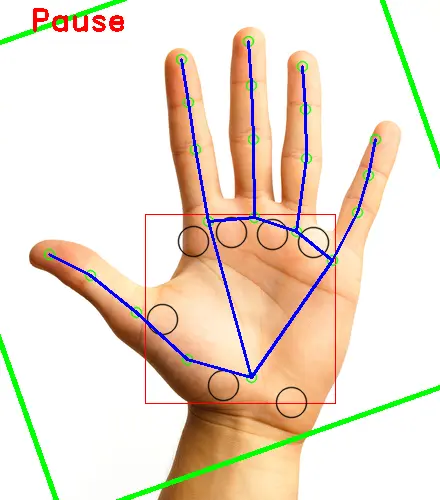

  output image
