YOLOv8 目标分割
使用 Ultralytics 官方 bus.jpg 运行 YOLOv8-N 实例分割。示例通过 TFLite XNNPACK 委托在 CPU 上执行推理，发布结构化检测框、实例掩码和带分割掩码的结果图片。
本文仅介绍本地图片输入，未验证 QRB、Orbbec 或 USB 摄像头输入。
需要从源码构建
Q900 当前提供的 qrb_ros_nn_inference 1.1.1 和 qrb_ros_cv_tensor_common_process 0.0.0 与当前 QAI Hub 导出的模型以及示例节点间存在 TensorList ABI 差异。需要将接口、推理、张量处理和示例源码放在同一个工作区构建，确保所有组件使用相同的 TensorList ABI。
管线
-> NV12 图片发布器 -> /image_raw
-> 缩放、归一化和 NHWC float32 转换
-> /qrb_inference_input_tensor
-> TFLite YOLOv8 推理
-> /yolo_segment_tensor_output
-> NMS、掩码系数和 COCO 标签映射
-> /yolo_segment_result
-> 检测框和实例掩码叠加
-> /yolo_segment_overlay
ROS 2 话题
| 话题 | 类型 | 发布节点 |
|---|---|---|
/image_raw | sensor_msgs/msg/Image | 本地 NV12 图片发布器 |
/qrb_inference_input_tensor | qrb_ros_tensor_list_msgs/msg/TensorList | yolo_preprocess_node |
/yolo_segment_tensor_output | qrb_ros_tensor_list_msgs/msg/TensorList | nn_inference_node |
/yolo_segment_result | vision_msgs/msg/Detection2DArray | yolo_segment_postprocess_node |
/yolo_segment_overlay | sensor_msgs/msg/Image | yolo_segment_overlay_node |
前提条件
- 已完成 QIR SDK 安装
- Q900 可以访问 GitHub 和 Ultralytics
- Q900 至少有 1 GB 可用空间
在主机上导出模型
通过 QAI Hub 生成 YOLOv8-Segmentation TFLite float 模型。
步骤 1：安装 QAI Hub Models
host$
python3 -m venv ~/venv_qaihub
source ~/venv_qaihub/bin/activate
pip install qai-hub-models
步骤 2：配置 QAI Hub
从 Qualcomm AI Hub 的账号设置页面获取 API token：
host$
source ~/venv_qaihub/bin/activate
qai-hub configure --api_token <your-api-token>
步骤 3：导出 TFLite 模型
使用 Dragonwing IQ-9075 EVK 作为目标设备：
host$
source ~/venv_qaihub/bin/activate
python3 -m qai_hub_models.models.yolov8_seg.export \
--target-runtime tflite \
--device "Dragonwing IQ-9075 EVK" \
--skip-profiling \
--skip-inferencing \
--output-dir ~/qai_hub_models/yolov8_seg
该命令会下载 YOLOv8-N-Seg 权重，在 QAI Hub 上编译模型并下载 yolov8_seg.tflite。
步骤 4：传输模型和标签
查找导出的模型和 Ultralytics 提供的 coco8.yaml：
host$
source ~/venv_qaihub/bin/activate
MODEL_PATH=$(find ~/qai_hub_models/yolov8_seg \
-type f -name yolov8_seg.tflite -print -quit)
LABEL_PATH=$(python3 -c \
'import pathlib, ultralytics; print(pathlib.Path(ultralytics.__file__).parent / "cfg/datasets/coco8.yaml")')
test -n "$MODEL_PATH" && test -f "$LABEL_PATH"
scp "$MODEL_PATH" <device-user>@<device-ip>:/tmp/yolov8_seg.tflite
scp "$LABEL_PATH" <device-user>@<device-ip>:/tmp/coco8.yaml
在 Q900 上安装两个文件：
radxa@airbox$
sudo install -d -m 0755 /opt/model
sudo install -m 0644 /tmp/yolov8_seg.tflite \
/opt/model/yolov8_seg.tflite
sudo install -m 0644 /tmp/coco8.yaml /opt/coco8.yaml
构建源码
步骤 1：安装依赖
radxa@airbox$
sudo apt install -y \
ros-dev-tools \
ros-jazzy-sample-object-segmentation \
ros-jazzy-qrb-ros-cv-tensor-common-process \
ros-jazzy-image-publisher
步骤 2：克隆源码
创建工作区，并将相关仓库放在同一个 src 目录：
radxa@airbox$
mkdir -p ~/qrb_ros_ws/src && cd ~/qrb_ros_ws/src
git clone https://github.com/qualcomm-qrb-ros/qrb_ros_interfaces.git
git clone https://github.com/qualcomm-qrb-ros/qrb_ros_nn_inference.git
git clone https://github.com/qualcomm-qrb-ros/qrb_ros_tensor_process.git
git clone https://github.com/qualcomm-qrb-ros/qrb_ros_samples.git
步骤 3：构建推理和示例包
radxa@airbox$
cd ~/qrb_ros_ws
source /opt/ros/jazzy/setup.bash
colcon build \
--packages-up-to sample_object_segmentation \
--allow-overriding qrb_ros_tensor_list_msgs
步骤 4：构建图片预处理包
sample_object_segmentation 没有声明对图片预处理包的源码依赖，需要显式构建：
radxa@airbox$
cd ~/qrb_ros_ws
source /opt/ros/jazzy/setup.bash
source install/setup.bash
colcon build \
--packages-select qrb_ros_cv_tensor_common_process \
--allow-overriding qrb_ros_tensor_list_msgs
准备测试图片
下载 Ultralytics 官方测试图片：
radxa@airbox$
mkdir -p ~/qrb_ros_ws/input
wget https://ultralytics.com/images/bus.jpg \
-O ~/qrb_ros_ws/input/bus.jpg
echo "c02019c4979c191eb739ddd944445ef408dad5679acab6fd520ef9d434bfbc63 $HOME/qrb_ros_ws/input/bus.jpg" | \
sha256sum --check
创建静态图片发布器
创建 ~/qrb_ros_ws/nv12_image_publisher.py，将 JPEG 缩放为 640 x 640 并转换为 NV12 格式：
import sys
import cv2
import numpy as np
import rclpy
from rclpy.node import Node
from sensor_msgs.msg import Image
class Nv12ImagePublisher(Node):
def __init__(self, image_path):
super().__init__("nv12_image_publisher")
image = cv2.imread(image_path, cv2.IMREAD_COLOR)
if image is None:
raise RuntimeError(f"Failed to load image: {image_path}")
image = cv2.resize(image, (640, 640), interpolation=cv2.INTER_LINEAR)
height, width = image.shape[:2]
i420 = cv2.cvtColor(image, cv2.COLOR_BGR2YUV_I420).reshape(-1)
y_size = width * height
chroma_size = y_size // 4
y = i420[:y_size]
u = i420[y_size : y_size + chroma_size]
v = i420[y_size + chroma_size : y_size + 2 * chroma_size]
uv = np.empty(y_size // 2, dtype=np.uint8)
uv[0::2] = u
uv[1::2] = v
self.message = Image()
self.message.header.frame_id = "camera"
self.message.height = height
self.message.width = width
self.message.encoding = "nv12"
self.message.is_bigendian = False
self.message.step = width
self.message.data = np.concatenate((y, uv)).tobytes()
self.publisher = self.create_publisher(Image, "/image_raw", 10)
self.timer = self.create_timer(0.1, self.publish_image)
self.get_logger().info(
f"Publishing {image_path} as nv12 ({width}x{height})"
)
def publish_image(self):
self.message.header.stamp = self.get_clock().now().to_msg()
self.publisher.publish(self.message)
def main():
if len(sys.argv) != 2:
raise SystemExit("usage: nv12_image_publisher.py <image-path>")
rclpy.init()
node = Nv12ImagePublisher(sys.argv[1])
try:
rclpy.spin(node)
except KeyboardInterrupt:
pass
finally:
node.destroy_node()
if rclpy.ok():
rclpy.shutdown()
if __name__ == "__main__":
main()
创建图片输入 launch
创建 ~/qrb_ros_ws/launch_with_image_publisher.py：
from launch import LaunchDescription
from launch.actions import DeclareLaunchArgument, ExecuteProcess
from launch.substitutions import LaunchConfiguration
from launch_ros.actions import ComposableNodeContainer
from launch_ros.descriptions import ComposableNode
def generate_launch_description():
declared_args = [
DeclareLaunchArgument("image_path"),
DeclareLaunchArgument("publisher_script"),
DeclareLaunchArgument("model"),
DeclareLaunchArgument("label_file"),
DeclareLaunchArgument("score_thres", default_value="0.7"),
DeclareLaunchArgument("iou_thres", default_value="0.5"),
]
image_publisher = ExecuteProcess(
cmd=[
"python3",
LaunchConfiguration("publisher_script"),
LaunchConfiguration("image_path"),
],
output="screen",
)
preprocess = ComposableNode(
package="qrb_ros_cv_tensor_common_process",
plugin="qrb_ros::cv_tensor_common_process::CvTensorCommonProcessNode",
name="yolo_preprocess_node",
parameters=[
{"target_res": "640x640"},
{"normalize": True},
{"tensor_fmt": "nhwc"},
{"data_type": "float32"},
],
remappings=[
("input_image", "/image_raw"),
("encoded_image", "qrb_inference_input_tensor"),
],
)
inference = ComposableNode(
package="qrb_ros_nn_inference",
plugin="qrb_ros::nn_inference::QrbRosInferenceNode",
name="nn_inference_node",
parameters=[
{
"backend_option": "",
"model_path": LaunchConfiguration("model"),
}
],
remappings=[
("qrb_inference_output_tensor", "yolo_segment_tensor_output"),
],
)
postprocess = ComposableNode(
package="qrb_ros_yolo_process",
plugin="qrb_ros::yolo_process::YoloSegPostProcessNode",
name="yolo_segment_postprocess_node",
parameters=[
{"label_file": LaunchConfiguration("label_file")},
{"score_thres": LaunchConfiguration("score_thres")},
{"iou_thres": LaunchConfiguration("iou_thres")},
],
)
overlay = ComposableNode(
package="qrb_ros_yolo_process",
plugin="qrb_ros::yolo_process::YoloSegOverlayNode",
name="yolo_segment_overlay_node",
parameters=[
{"target_res": "640x640"},
{"mask_res": "160x160"},
],
)
container = ComposableNodeContainer(
name="yolo_node_container",
namespace="",
package="rclcpp_components",
executable="component_container",
composable_node_descriptions=[overlay, postprocess, inference, preprocess],
output="screen",
)
return LaunchDescription(declared_args + [image_publisher, container])
运行
radxa@airbox$
cd ~/qrb_ros_ws
source /opt/ros/jazzy/setup.bash
source install/setup.bash
export ROS_DOMAIN_ID=123
ros2 launch ~/qrb_ros_ws/launch_with_image_publisher.py \
publisher_script:="$HOME/qrb_ros_ws/nv12_image_publisher.py" \
image_path:="$HOME/qrb_ros_ws/input/bus.jpg" \
model:=/opt/model/yolov8_seg.tflite \
label_file:=/opt/coco8.yaml
预期输出
模型完成初始化，并持续执行推理：
Initialized TensorFlow Lite runtime.
Applying 1 TensorFlow Lite delegate(s) lazily.
Created TensorFlow Lite XNNPACK delegate for CPU.
Successfully applied the default TensorFlow Lite delegate indexed at 0.
[QRB INFO] Inference init Successfully!
[INFO] [nn_inference_node]: Inference init successfully!
[INFO] [nv12_image_publisher]: Publishing /home/radxa/qrb_ros_ws/input/bus.jpg as nv12 (640x640)
[INFO] [nn_inference_node]: Got model input data, start executing inference...
[QRB INFO] Inference execute Successfully!
[INFO] [nn_inference_node]: Inference execute successfully!
[INFO] [nn_inference_node]: Publish the inference result...

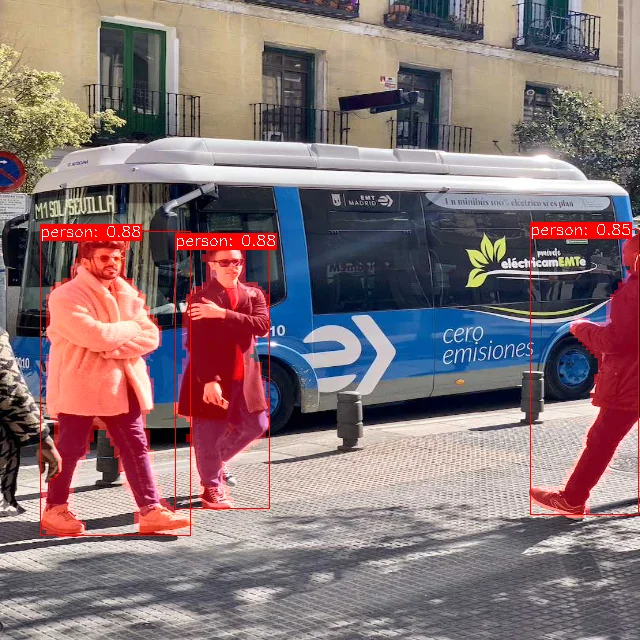

实机捕获的 /yolo_segment_overlay 如下：
验证
在另一个终端中检查分割结果和叠加图话题：
radxa@airbox$
cd ~/qrb_ros_ws
source /opt/ros/jazzy/setup.bash
source install/setup.bash
export ROS_DOMAIN_ID=123
ros2 topic info /yolo_segment_result -v
ros2 topic info /yolo_segment_overlay -v
ros2 topic echo /yolo_segment_result --once
默认阈值 0.7 下，测试图片应包含 3 个分割结果：
person 0.8833
person 0.8768
person 0.8496
/yolo_segment_overlay 应为 640 x 640 的 bgr8 图片，掩码以半透明红色叠加在原图上。需要图形化查看时，在与 Q900 使用相同 ROS_DOMAIN_ID 的 ROS 2 Jazzy 桌面环境中启动 rqt，依次选择 Plugins > Visualization > Image View，再选择 /yolo_segment_overlay。
停止
在运行示例的终端中按 Ctrl + C。
限制
- 本次仅验证本地图片输入，未验证 QRB、Orbbec 或 USB 摄像头。
- 输入图片会缩放为
640 x 640，检测框和掩码坐标对应缩放后的图片。 - 未验证跨设备
rqt显示，仅验证 Q900 本地推理、检测消息和叠加图发布。 - 必须从源码构建相关仓库；混用 Debian 和源码版本的
TensorList会导致 ABI 不兼容。 - 测试图片中
bus类别在0.7阈值下被过滤，仅 3 个人物类别通过。
