硬件接口说明

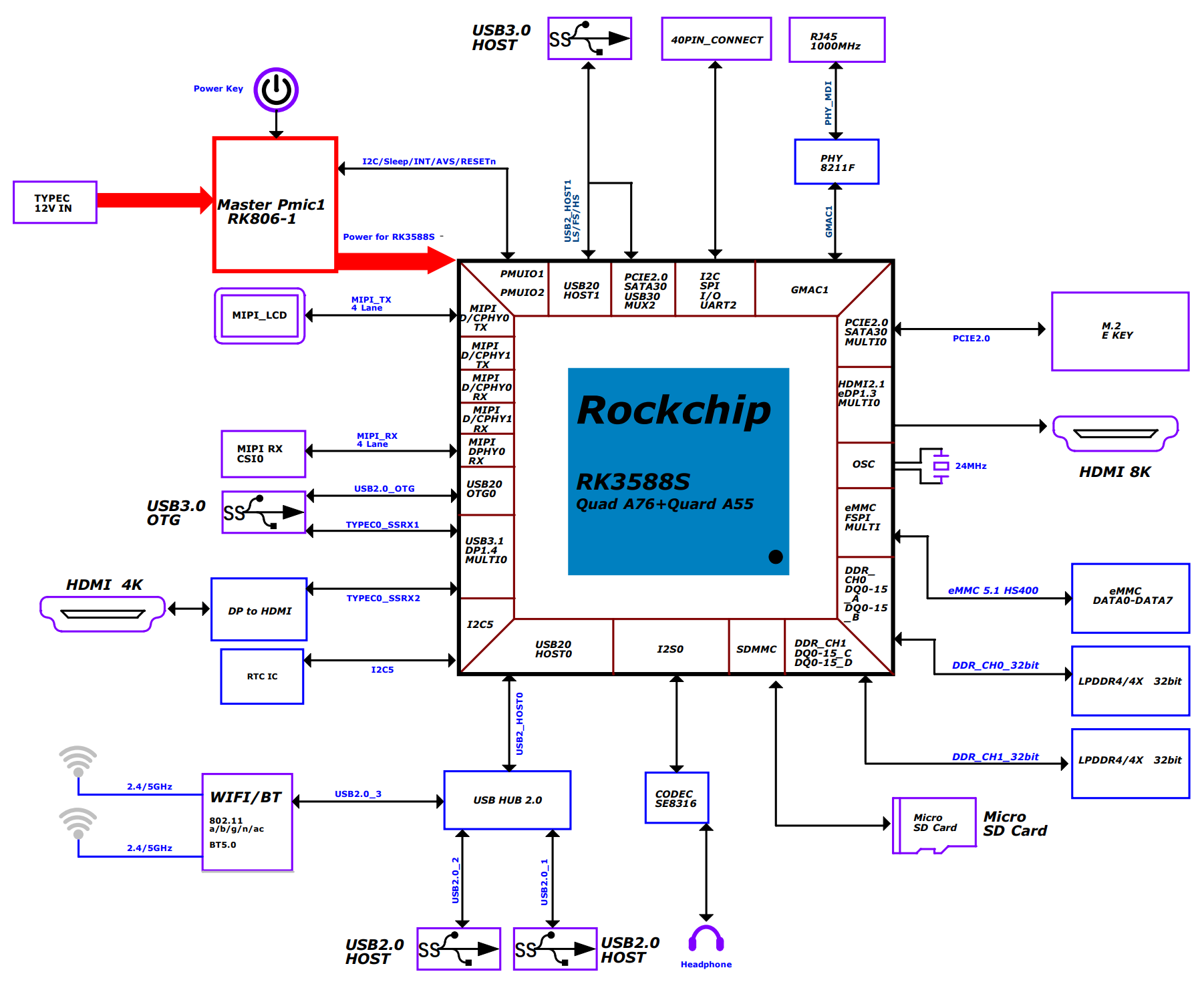

芯片框图

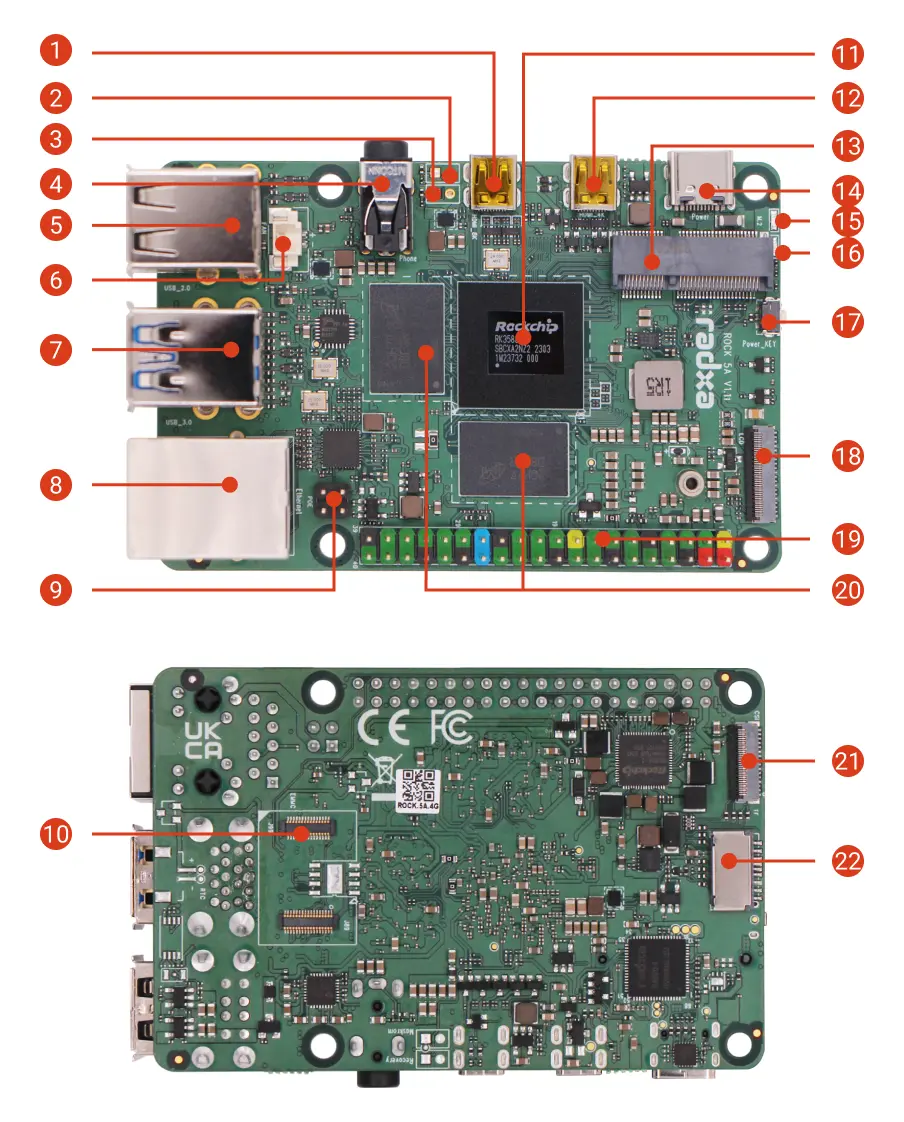

实物照片
接口详情
eMMC && SPI Flash Connector
Pin | Name | Pin | Name |
---|---|---|---|
1 | eMMC_DTE | 2 | eMMC_D5 |
3 | GND | 4 | eMMC_D4 |
5 | GND | 6 | eMMC_D0/FSPI_D0 |
7 | GND | 8 | eMMC_CLKOUT |
9 | GND | 10 | eMMC_D3/FSPI_D3 |
11 | GND | 12 | VCCIO_FLASH |
13 | GND | 14 | GND |
15 | eMMC_DATA_STROBE | 16 | GND |
17 | GND | 18 | GND |
19 | GND | 20 | VCCIO_FLASH |
21 | VCCIO_FLASH | 22 | VCC_3V3_S0 |
23 | VCC_3V3_S0 | 24 | GND |
25 | eMMC_CMD/FSPI_CLK | 26 | GND |
27 | eMMC_D2/FSPI_D2 | 28 | GND |
29 | eMMC_D1/FSPI_D1 | 30 | GND |
31 | eMMC_D7 | 32 | GND |
33 | eMMC_D6/FSPI_CS0 | 34 | GND |
35 | GND | 36 | GND |
37 | GND | 38 | GND |
39 | GND | 40 | GND |
41 | GND | 42 | GND |
43 | GND | 44 | GND |
45 | GND | 46 | GND |
47 | GND | 48 | GND |
49 | GND | 50 | GND |
51 | 52 | GND | |
53 | 54 | GND | |
55 | 56 | GND | |
57 | 58 | GND | |
59 | 60 | GND | |
61 | 62 | GND | |
63 | 64 | GND |
提示
eMMC 和 SPI Flash 是互斥的,连接器同一时间只能连接 eMMC 或者 SPI Flash 其中一个
FAN Header
Pin | Name | Pin | Name |
---|---|---|---|
1 | FAN-PWM | 2 | VCC_5V0 |
3 | GND | 4 | GND |
GPIO
GPIO 电压
- x1.2/v1.1
- x1.1
GPIO | 电压 | 最高 |
---|---|---|
所有的GPIO | 3.3V | 3.63V |
SARADC_IN2 | 1.8V | 1.8V |
GPIO | 电压 | 最高 |
---|---|---|
所有的GPIO | 3.3V | 3.63V |
SARADC_IN5 | 1.8V | 1.8V |
GPIO Pinout
ROCK 5A 提供了一个40pin针脚的GPIO座子,兼容于市面上大部分传感器的应用。
- x1.2/v1.1
- x1.1
GPIO number | Function7 | Function6 | Function5 | Function4 | Function3 | Function2 | Function1 | Pin# | Pin# | Function1 | Function2 | Function3 | Function4 | Function5 | Function6 | Function7 | GPIO number |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
+3.3V | 1 | 2 | +5.0V | ||||||||||||||
63 | PWM15_IR_M3 | I2C8_SDA_M2 | UART1_CTSN_M1 | GPIO1_D7 | 3 | 4 | +5.0V | ||||||||||
62 | PWM14_M2 | I2C8_SCL_M2 | UART1_RTSN_M1 | GPIO1_D6 | 5 | 6 | GND | ||||||||||
43 | UART4_TX_M2 | GPIO1_B3 | 7 | 8 | GPIO0_B5 | UART2_TX_M0 | I2C1_SCL_M0 | I2S1_MCLK_M1 | 13 | ||||||||
GND | 9 | 10 | GPIO0_B6 | UART2_RX_M0 | I2C1_SDA_M0 | I2S1_SCLK_M1 | 14 | ||||||||||
139 | I2S1_SDO2_M0 | CAN1_TX_M1 | PWM15_IR_M1 | I2C7_SDA_M3 | UART8_CTSN_M0 | GPIO4_B3 | 11 | 12 | GPIO4_A1 | UART9_CTSN_M1 | I2S1_SCLK_M0 | SPI0_MOSI_M1 | 129 | ||||
138 | SPI0_CS0_M1 | I2S1_SDO1_M0 | CAN1_RX_M1 | PWM14_M1 | I2C7_SCL_M3 | UART8_RTSN_M0 | GPIO4_B2 | 13 | 14 | GND | |||||||
140 | I2S1_SDO3_M0 | SPDIF0_TX_M1 | PWM11_IR_M1 | UART9_TX_M1 | GPIO4_B4 | 15 | 16 | GPIO1_A5 | SPI2_MOSI_M0 | 37 | |||||||
+3.3V | 17 | 18 | GPIO1_B0 | SPI2_CS1_M0 | 40 | ||||||||||||
33 | SPI4_MOSI_M2 | I2C2_SCL_M4 | UART6_TX_M1 | GPIO1_A1 | 19 | 20 | GND | ||||||||||
32 | SPI4_MISO_M2 | I2C2_SDA_M4 | UART6_RX_M1 | GPIO1_A0 | 21 | 22 | GPIO1_B5 | UART7_TX_M2 | SPI0_CS1_M2 | 45 | |||||||
34 | SPI4_CLK_M2 | PWM0_M2 | I2C4_SDA_M3 | UART6_RTSN_M1 | GPIO1_A2 | 23 | 24 | GPIO1_A3 | UART6_CTSN_M1 | I2C4_SCL_M3 | PWM1_M2 | SPI4_CS0_M2 | 35 | ||||
GND | 25 | 26 | GPIO1_A4 | SPI2_MISO_M0 | 36 | ||||||||||||
23 | SPI0_MISO_M0 | I2S1_SDI2_M1 | PWM6_M0 | I2C6_SDA_M0 | UART1_RTSN_M2 | GPIO0_C7 | 27 | 28 | GPIO0_D0 | UART1_CTSN_M2 | I2C6_SCL_M0 | PWM7_IR_M0 | I2S1_SDI3_M1 | SPI3_MISO_M2 | 24 | ||
42 | SPI0_MOSI_M2 | UART4_RX_M2 | GPIO1_B2 | 29 | 30 | GND | |||||||||||
41 | SPI0_MISO_M2 | GPIO1_B1 | 31 | 32 | GPIO4_B0 | UART8_TX_M0 | I2C6_SDA_M3 | I2S1_SDI3_M0 | SPI2_CS1_M1 | 136 | |||||||
44 | SPI0_CS0_M2 | UART7_RX_M2 | GPIO1_B4 | 33 | 34 | GND | |||||||||||
128 | SPI0_MISO_M1 | I2S1_MCLK_M0 | UART9_RTSN_M1 | GPIO4_A0 | 35 | 36 | GPIO4_A2 | I2S1_LRCK_M0 | SPI0_CLK_M1 | 130 | |||||||
SARADC_VIN2 | 37 | 38 | GPIO4_A5 | UART3_TX_M2 | I2C3_SDA_M2 | I2S1_SDI0_M0 | 133 | ||||||||||
GND | 39 | 40 | GPIO4_B1 | UART8_RX_M0 | I2C6_SCL_M3 | SPDIF1_TX_M1 | I2S1_SDO0_M0 | SPI0_CS1_M1 | 137 |
提示: 实际兼容情况以使用为准。
GPIO number | Function6 | Function5 | Function4 | Function3 | Function2 | Function1 | Pin# | Pin# | Function1 | Function2 | Function3 | Function4 | Function5 | Function6 | Function7 | GPIO number |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
+3.3V | 1 | 2 | +5.0V | |||||||||||||
32 | UART6_RX | SPI4_MISO | I2C2_SDA | GPIO1_A0 | 3 | 4 | +5.0V | |||||||||
33 | UART6_TX | SPI4_MOSI | I2C2_SCL | GPIO1_A1 | 5 | 6 | GND | |||||||||
43 | PDM1_CLK1 | UART4_TX | SPI0_CLK | GPIO1_B3 | 7 | 8 | GPIO0_B5 | UART2_TX_M0 | I2C1_SCL | I2S1_MCLK | 13 | |||||
GND | 9 | 10 | GPIO0_B6 | UART2_RX_M0 | I2C1_SDA | I2S1_SCLK | 14 | |||||||||
34 | PWM0 | UART6_RTS | SPI4_CLK | I2C4_SDA | GPIO1_A2 | 11 | 12 | GPIO4_A1 | SPI0_MOSI | UART9_CTS | I2S1_SCLK | 129 | ||||
35 | PWM1 | UART6_CTS | SPI4_CS0 | I2C4_SCL | GPIO1_A3 | 13 | 14 | GND | ||||||||
140 | I2S1_SDO3 | SPDIF0_TX | PWM11 | UART9_TX | GPIO4_B4 | 15 | 16 | GPIO1_D6 | I2C8_SCL | UART1_RTS | PWM14 | 62 | ||||
+3.3V | 17 | 18 | GPIO1_D7 | I2C8_SDA | UART1_CTS | PWM15 | 63 | |||||||||
37 | SPI2_MOSI | GPIO1_A5 | 19 | 20 | GND | |||||||||||
36 | SPI2_MISO | GPIO1_A4 | 21 | 22 | GPIO1_B5 | SPI0_CS1 | UART7_TX | 45 | ||||||||
38 | SPI2_CLK | GPIO1_A6 | 23 | 24 | GPIO1_A7 | SPI2_CS0 | PDM1_SDI0 | PWM3 | 39 | |||||||
GND | 25 | 26 | SARADC_VIN5 | |||||||||||||
139 | CAN1_TX | I2S1_SDO2 | PWM15 | UART8_CTS | I2C7_SDA | GPIO4_B3 | 27 | 28 | GPIO4_B2 | I2C7_SCL | SPI0_CS0 | UART8_RTS | PWM14 | I2S1_SDO1 | CAN1_RX | 138 |
42 | PDM1_SDI3 | UART4_RX | SPI0_MOSI | GPIO1_B2 | 29 | 30 | GND | |||||||||
41 | PDM1_SDI2 | SPI0_MISO | GPIO1_B1 | 31 | 32 | GPIO4_B0 | I2C6_SDA | UART8_TX | I2S1_SDI3 | 136 | ||||||
44 | PDM1_CLK0 | UART7_RX | GPIO1_B4 | 33 | 34 | GND | ||||||||||
128 | I2S1_MCLK | UART9_RTS | SPI0_MISO | GPIO4_A0 | 35 | 36 | GPIO4_A2 | SPI0_CLK | I2S1_LRCK | 130 | ||||||
40 | PDM1_SDI1 | SPI2_CS1 | GPIO1_B0 | 37 | 38 | GPIO4_A5 | I2C3_SDA | UART3_TX | I2S1_SDI0 | 133 | ||||||
GND | 39 | 40 | GPIO4_B1 | I2C6_SCL | SPI0_CS1 | UART8_RX | SPDIF1_TX | I2S1_SDO0 | 137 |
40-Pin 引脚 USB 功能配置
在 ROCK 5A 的 40-Pin 接口中,以下引脚可以配置为 USB 2.0:
- USB4_DM:引脚编号为 28,对应电阻位号为 R104。
- USB4_DP:引脚编号为 27,对应电阻位号为 R106。
默认情况下,Pin-27 可以在软件中配置为 GPIO0_C7 等功能(详见 40-Pin Pinout),同时 USB4_DP 信号在硬件上未激活。Pin-28 可以在软件中配置为 GPIO0_D0 等功能(详见 40-Pin Pinout),USB4_DM 信号在硬件上也未激活。如需将这些引脚改为 USB 功能,请按照以下步骤修改预留电阻:
- 移除 R169 和 R170 的 0 欧电阻。
- 焊接 0 欧电阻到 R104 和 R106 上。
提示
原理图和位号信息可在硬件资料中查阅和下载,硬件资料下载
[操作提示]
此操作需要具备一定的焊接技巧,建议由有经验的技术人员完成。
Gigabit Ethernet
Pin | Name | Pin | Name |
---|---|---|---|
1 | PHY1_MDI0+ | 2 | PHY1_MDI0- |
3 | PHY1_MDI1+ | 4 | GND |
5 | GND | 6 | PHY1_MDI1- |
7 | PHY1_MDI2+ | 8 | PHY1_MDI2- |
9 | PHY1_MDI3+ | 10 | PHY1_MDI3- |
11 | PHY1_MDI0- | 12 | PHY1_MDI0+ |
13 | GND | 14 | PHY1_MDI1+ |
15 | PHY1_LED_G+ | 16 | PHY1_G_LED- |
17 | PHY1_Y_LED+ | 18 | PHY1_Y_LED |
19 | GND | 20 | GND |
Maskrom Button
Pin | Name | Pin | Name |
---|---|---|---|
1 | SARADC_VIN0_BOOT | 2 | GND |
MIPI CSI
Pin | Name | Pin | Name |
---|---|---|---|
1 | GND | 2 | MIPI_CSI0_RX_D3N |
3 | MIPI_CSI0_RX_D3P | 4 | GND |
5 | MIPI_CSI0_RX_D2N | 6 | MIPI_CSI0_RX_D2P |
7 | GND | 8 | MIPI_CSI0_RX_CLK1N |
9 | MIPI_CSI0_RX_CLK1P | 10 | GND |
11 | MIPI_CSI0_RX_D1N | 12 | MIPI_CSI0_RX_D1P |
13 | GND | 14 | MIPI_CSI0_RX_D0N |
15 | MIPI_CSI0_RX_D0P | 16 | GND |
17 | MIPI_CSI0_RX_CLK0N | 18 | MIPI_CSI0_RX_CLK0P |
19 | GND | 20 | MIPI_CAMERA2_CLK_1 |
21 | GND | 22 | MIPI_CAMERA1_CLK_1 |
23 | MIPI_CAM1_PDN_H | 24 | I2C3_SCK_M0 |
25 | I2C3_SDA_M0 | 26 | MIPI_CAM0_PDN_H |
27 | MIPI_CAM_RST | 28 | VCC_3V3_S0 |
29 | VCC_3V3_S0 | 30 | VCC_5V0 |
31 | VCC_5V0 |
MIPI CSI
Pin | Name | Pin | Name |
---|---|---|---|
1 | VCC_LCD_MIPI_2 | 2 | VCC_1V8_S0 |
3 | 4 | LCD_RESET_1 | |
5 | 6 | GND | |
7 | MIPI_DPHY0_TX_D0N | 8 | MIPI_DPHY0_TX_D0P |
9 | GND | 10 | MIPI_DPHY0_TX_D1N |
11 | MIPI_DPHY0_TX_D1P | 12 | GND |
13 | MIPI_DPHY0_TX_CLKN | 14 | MIPI_DPHY0_TX_CLKP |
15 | GND | 16 | MIPI_DPHY0_TX_D2N |
17 | MIPI_DPHY0_TX_D2P | 18 | GND |
19 | MIPI_DPHY0_TX_D3N | 20 | MIPI_DPHY0_TX_D3P |
22 | GND | 22 | GND |
23 | TP_RST_LCD | 24 | VCC_TP |
25 | TP_INT_LCD | 26 | TP_SDA_LCD |
27 | TP_SCL_LCD | 28 | GND |
29 | GND | 30 | VCC_LCD_MIPI_2 |
31 | VCC_LCD_MIPI_2 | 32 | GND |
33 | GND | 34 | VCC_LEDK2 |
35 | VCC_LEDK2 | 36 | |
37 | 38 | VCC_LEDA2 | |
39 | VCC_LEDA2 | 40 | GND |
41 | GND |
PCIe E Key
Pin | Name | Pin | Name |
---|---|---|---|
1 | GND | 2 | VCC3V3_WF |
3 | USB3_DP | 4 | VCC3V3_WF |
5 | USB3_DM | 6 | WIFI_LED |
7 | GND | 8 | NC |
9 | NC | 10 | NC |
11 | NC | 12 | NC |
13 | NC | 14 | NC |
15 | NC | 16 | NC |
17 | NC | 18 | GND |
19 | NC | 20 | NC |
21 | NC | 22 | NC |
23 | NC | 24 | NC |
33 | NC | 32 | NC |
35 | PCIE20_0_TXP | 34 | NC |
37 | PCIE20_0_TXN | 36 | NC |
39 | GND | 38 | NC |
41 | PCIE20_0_RXP | 40 | NC |
43 | PCIE20_0_RXN | 42 | BT_REG_ON_H |
45 | GND | 44 | NC |
47 | PCIE20_0_REFCLKP | 46 | NC |
49 | PCIE20_0_REFCLKN | 48 | NC |
51 | GND | 50 | WIFIBT_32KIN_1T1R |
53 | PCIE20x1_2_CLKREQn_M0 | 52 | PCIE20x1_2_PERSTn_M0 |
55 | PCIE20x1_2_WAKEn_M0 | 54 | HOST_WAKE_BT_H |
57 | GND | 56 | BT_REG_ON_H |
59 | NC | 58 | I2C2_SDA_M0 |
61 | NC | 60 | I2C2_SCL_M0 |
63 | GND | 62 | NC |
65 | NC | 64 | NC |
67 | NC | 66 | NC |
69 | GND | 68 | NC |
71 | NC | 70 | HOST_WAKE_BT_H |
73 | NC | 72 | VCC3V3_WF |
75 | GND | 74 | VCC3V3_WF |
POE
Pin | Name | Pin | Name |
---|---|---|---|
1 | PHY1_MDI0+ | 2 | PHY1_MDI0- |
3 | PHY1_MDI1+ | 4 | GND |
5 | GND | 6 | PHY1_MDI1- |
7 | PHY1_MDI2+ | 8 | PHY1_MDI2- |
9 | PHY1_MDI3+ | 10 | PHY1_MDI3- |
11 | PHY1_MDI0- | 12 | PHY1_MDI0+ |
13 | GND | 14 | PHY1_MDI1+ |
15 | PHY1_LED_G+ | 16 | PHY1_G_LED- |
17 | PHY1_Y_LED+ | 18 | PHY1_Y_LED- |
19 | GND |
TF Card Slot
Pin | Name | Pin | Name |
---|---|---|---|
1 | SDMMC_D2 | 2 | SDMMC_D3 |
3 | SDMMC_CMD | 4 | VCC_3V3_S3 |
5 | SDMMC_CLK | 6 | GND |
7 | SDMMC_D0 | 8 | SDMMC_D1 |
9 | SDMMC_DET_H | 10 | GND |
11 | GND | 12 | GND |
13 | GND |
