OpenPose Example

This document introduces how to use the CIX P1 NPU SDK to convert OpenPose into a model that can run on the CIX SOC NPU.

There are four main steps:

tip

Steps 1-3 should be executed in an x86 Linux environment.

  1. Download the NPU SDK and install the NOE Compiler
  2. Download the model files (code and scripts)
  3. Compile the model
  4. Deploy the model to Orion O6

Download the NPU SDK and Install the NOE Compiler​

Refer to Install NPU SDK for the installation of the NPU SDK and NOE Compiler.

Download the Model Files​

The CIX AI Model Hub includes all necessary files for OpenPose. Please follow the instructions in Download the CIX AI Model Hub Repository and navigate to the corresponding directory.

cd ai_model_hub/models/ComputeVision/Pose_Estimation/onnx_openpose

Please confirm that the directory structure matches the following:

.
├── cfg
│   ├── human-pose-estimationbuild.cfg
│   └── opt_template.json
├── datasets
│   └── calib_data_my.npy
├── inference_npu.py
├── inference_onnx.py
├── output_onnx.jpg
├── ReadMe.md
└── test_data
    ├── 1.jpeg
    └── 2.jpeg

Compile the Model​

tip

Users do not need to compile the model from scratch; Radxa provides the precompiled human-pose-estimation.cix model (which can be downloaded using the steps below). If using the precompiled model, you can skip the "Compile the Model" step.

wget https://modelscope.cn/models/cix/ai_model_hub_24_Q4/resolve/master/models/ComputeVision/Pose_Estimation/onnx_openpose/human-pose-estimation.cix

Prepare the ONNX Model​

  • Download the ONNX model:

    human-pose-estimation.onnx

  • Simplify the model:

    Here we use onnxsim for model input fixing and simplification.

    pip3 install onnxsim onnxruntime
    onnxsim human-pose-estimation.onnx human-pose-estimation-sim.onnx --overwrite-input-shape 1,3,256,360

Compile the Model​

The CIX SOC NPU supports INT8 computation. Before compiling the model, we need to use the NOE Compiler for INT8 quantization.

  • Prepare the calibration set:

    • Use the existing calibration set from datasets:

      .
      └── calib_data_my.npy

    • Prepare the calibration set yourself:

      The test_data directory already contains several images for the calibration set.

      .
      ├── 1.jpeg
      └── 2.jpeg

      Refer to the following script to generate the calibration file:

      import sys
      import os
      import numpy as np
      import cv2
      _abs_path = os.path.join(os.getcwd(), "../../../../")
      sys.path.append(_abs_path)
      from utils.image_process import preprocess_openpose
      from utils.tools import get_file_list
      # Get a list of images from the provided path
      images_path = "test_data"
      images_list = get_file_list(images_path)
      data = []
      for image_path in images_list:
          img_numpy = cv2.imread(image_path)
          input = preprocess_openpose(img_numpy, 256)[0]
          data.append(input)
      # Concatenate the data and save the calibration dataset
      data = np.concatenate(data, axis=0)
      np.save("datasets/calib_data_tmp.npy", data)
      print("Generate calibration dataset success.")

  • Use the NOE Compiler to quantify and compile the model:

    • Create a quantization and compilation configuration file. Please refer to the following configuration:

      [Common]
      mode = build

      [Parser]
      model_type = ONNX
      model_name = human-pose-estimation
      detection_postprocess =
      model_domain = OBJECT_DETECTION
      input_data_format = NCHW
      input_model = ./human-pose-estimation-sim.onnx
      input = images
      input_shape = [1, 3, 256, 360]
      output_dir = ./

      [Optimizer]
      dataset = numpydataset
      calibration_data = ./datasets/calib_data_tmp.npy
      calibration_batch_size = 1
      output_dir = ./
      quantize_method_for_activation = per_tensor_asymmetric
      quantize_method_for_weight = per_channel_symmetric_restricted_range
      save_statistic_info = True
      opt_config = cfg/opt_template.json
      cast_dtypes_for_lib = True

      [GBuilder]
      target = X2_1204MP3
      outputs = human-pose-estimation.cix
      tiling = fps

    • Compile the model:

      tip

      If you encounter the error [E] Optimizing model failed! CUDA error: no kernel image is available for execution on the device ..., it means the current version of Torch does not support this GPU. Please completely uninstall the current version of Torch and then download the latest version from the Torch website.

      cixbuild ./human-pose-estimationbuild.cfg

Model Deployment​

NPU Inference​

Copy the compiled .cix format model using the NOE Compiler to the Orion O6 development board for model validation.

python3 inference_npu.py --image_path ./test_data/ --model_path human-pose-estimation.cix
(.venv) radxa@orion-o6:~/NOE/ai_model_hub/models/ComputeVision/Pose_Estimation/onnx_openpose$ time python3 inference_npu.py --image_path ./test_data/ --model_path human-pose-estimation.cix
npu: noe_init_context success
npu: noe_load_graph success
Input tensor count is 1.
Output tensor count is 4.
npu: noe_create_job success
npu: noe_clean_job success
npu: noe_unload_graph success
npu: noe_deinit_context success

real    0m2.788s
user    0m3.158s
sys     0m0.276s

The results are saved in the output folder.

openpose_npu1

openpose_npu1

CPU Inference​

Use the CPU for ONNX model inference to verify correctness. It can be run on an x86 host or on Orion O6.

python3 inference_onnx.py --image_path ./test_data/ --onnx_path ./yolov8l.onnx
(.venv) radxa@orion-o6:~/NOE/ai_model_hub/models/ComputeVision/Pose_Estimation/onnx_openpose$ time python3 inference_onnx.py --image_path ./test_data/ --onnx_path human-pose-estimation.onnx

real    0m3.138s
user    0m6.961s
sys     0m0.318s

The results are saved in the output folder.

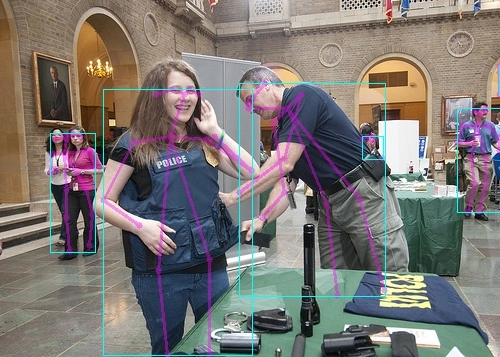

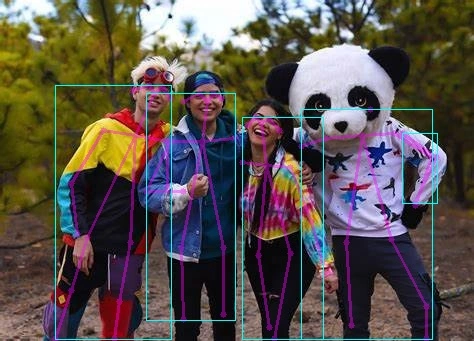

openpose_omnx1

openpose_onnx1

As can be seen, the inference results on the NPU and CPU are consistent, but the running speed is significantly reduced.

References​

Paper link: Real-time 2D Multi-Person Pose Estimation on CPU: Lightweight OpenPose
